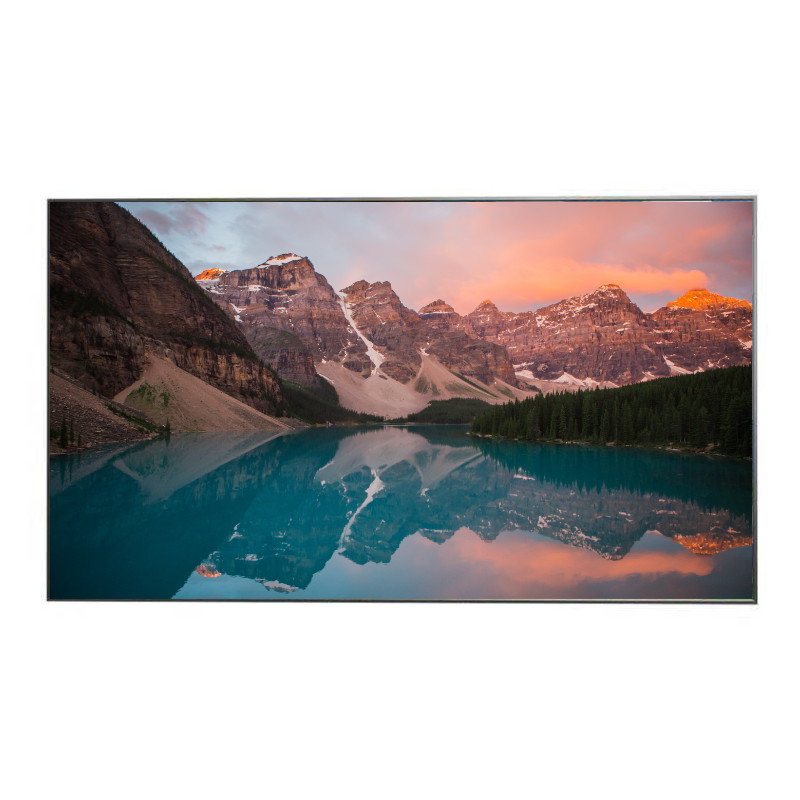

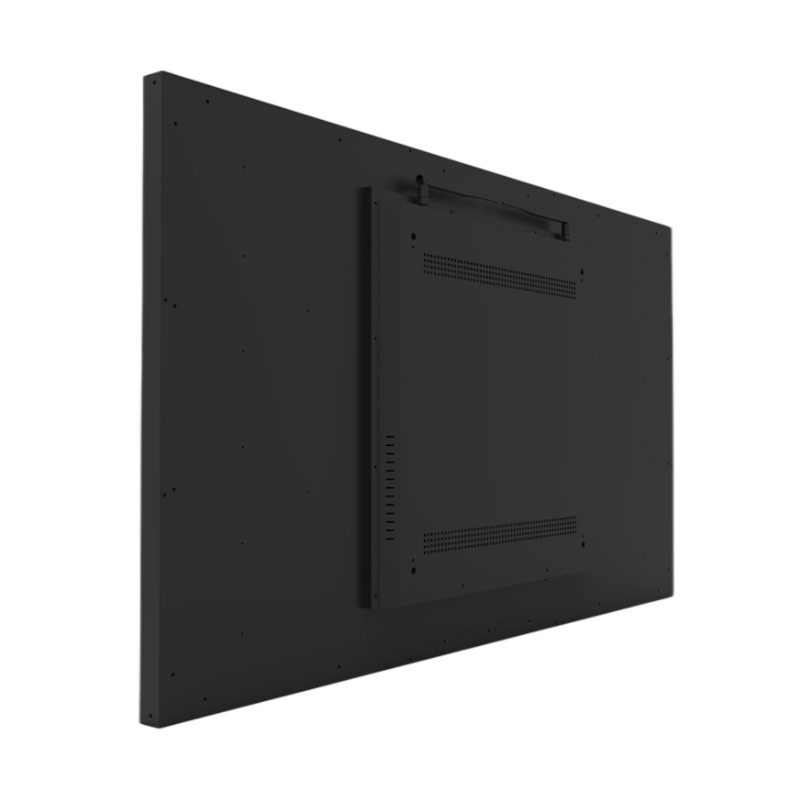

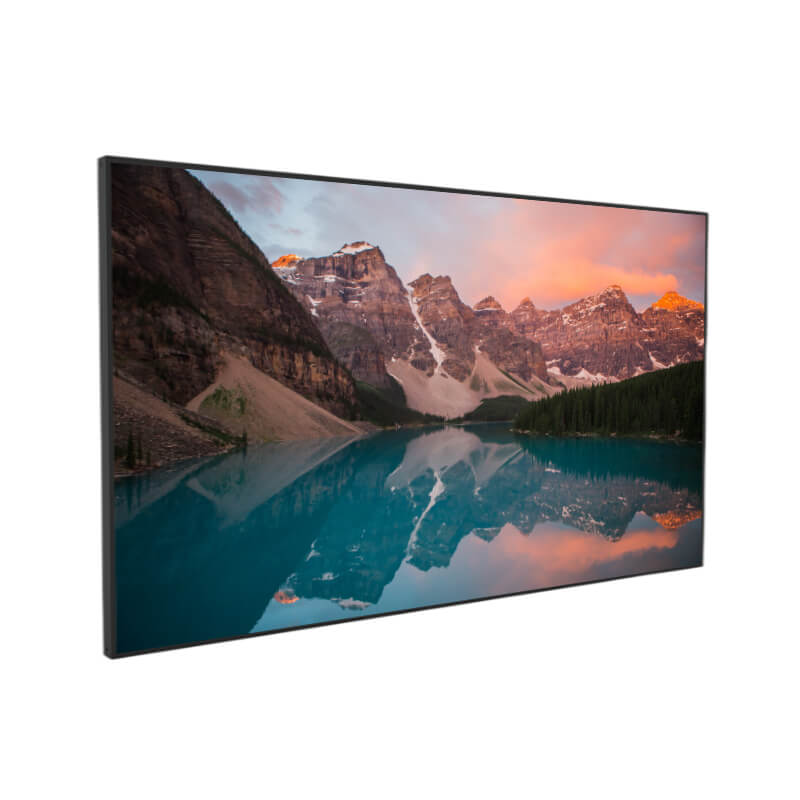

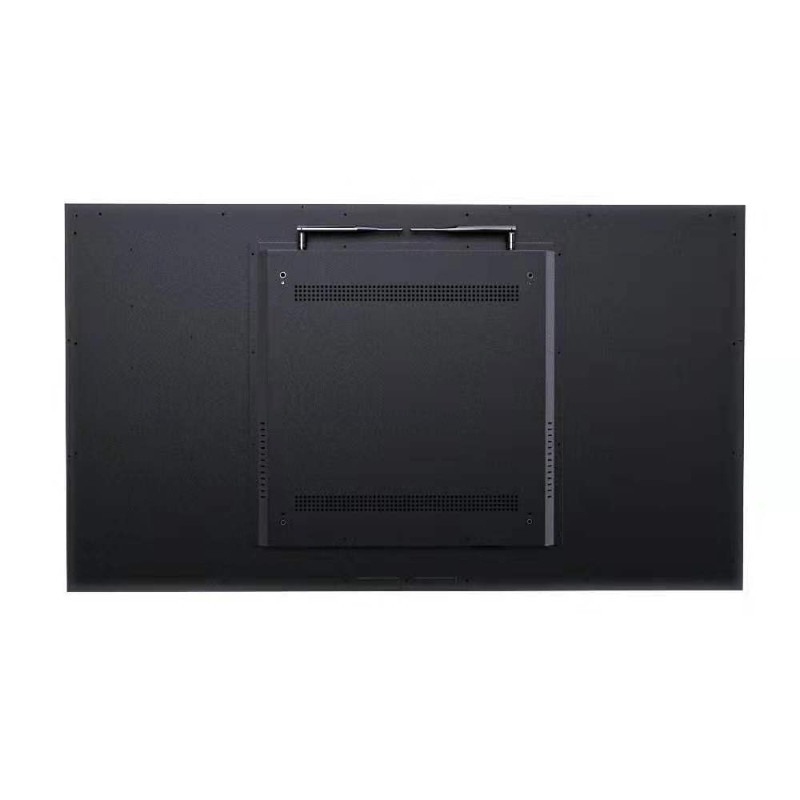

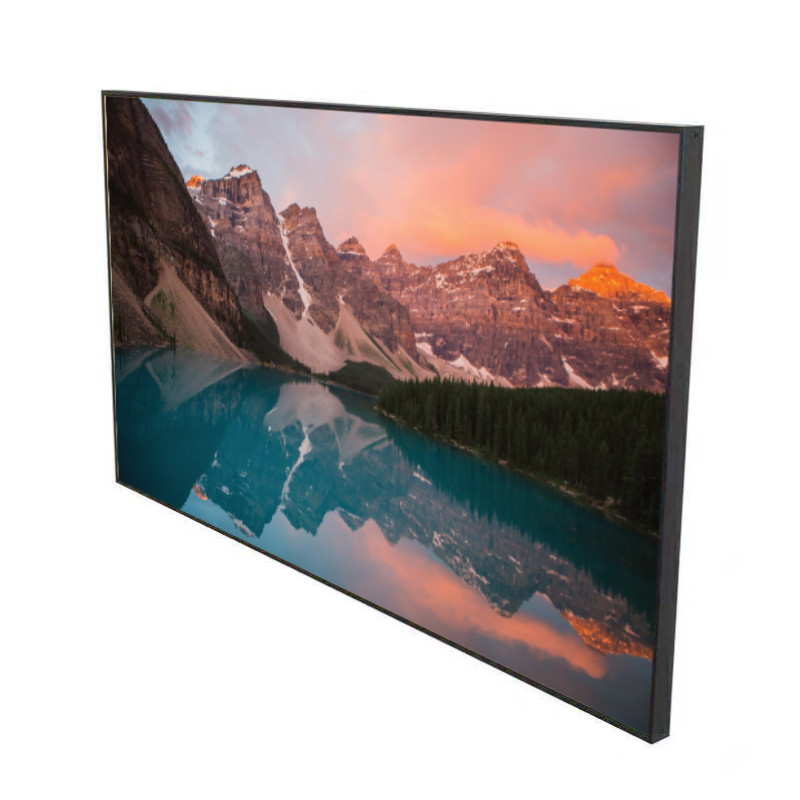

Android LCD Digital Menu Board For Restaurants

*Smart lock for thief-proof and protect content control
*Light case for any location installation
*Polished aluminum side frame
*Tempered glass, and bezel space for logo print
*Several split mode optional, support play video and pictures alone or simultaneously
*Several horizontal or vertical screen modes can be choose

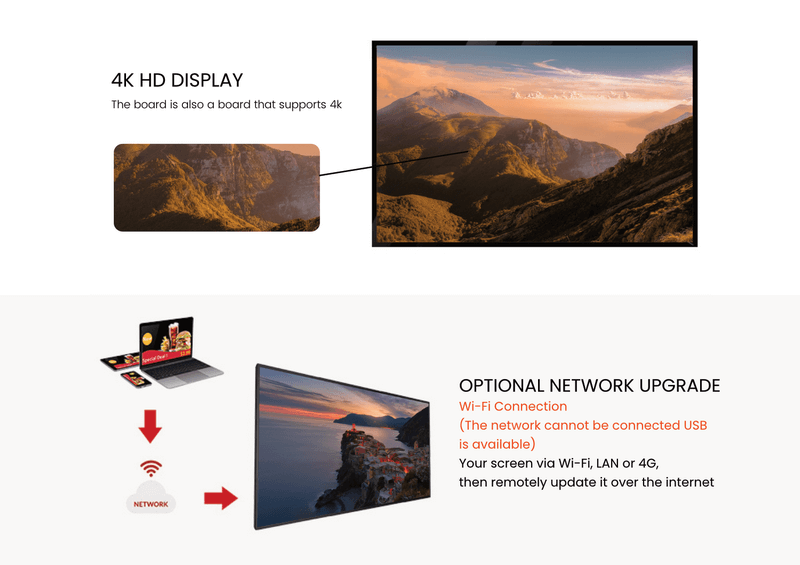

*Support remote modification, editing and release of metal plate content by mobile computer

Product Details:

This LCD digital menu board can rotate advertisements and display menus for customers to order food and can insert a memory card or computer control display screen. Can play different images, videos, rolling subtitles at the same time. As well as being able to create your own layouts you can choose from our exclusive library of pre-design editable templates. Choose an existing layout, add your own images and information then publish it to your screen. The screen can be used in either a landscape or portrait. As many as 26 kinds of split screen play styles, multicast is correct, and key split screen, advertising play is more convenient and efficient. Suitable for various restaurants, cafes, canteens, supermarkets and other places.

ANDROID LCD DIGITAL MENU BOARD FOR RESTAURANTS

android lcd digital menu board for restaurants6

android lcd digital menu board for restaurants9

android lcd digital menu board for restaurants8

android lcd digital menu board for restaurants10

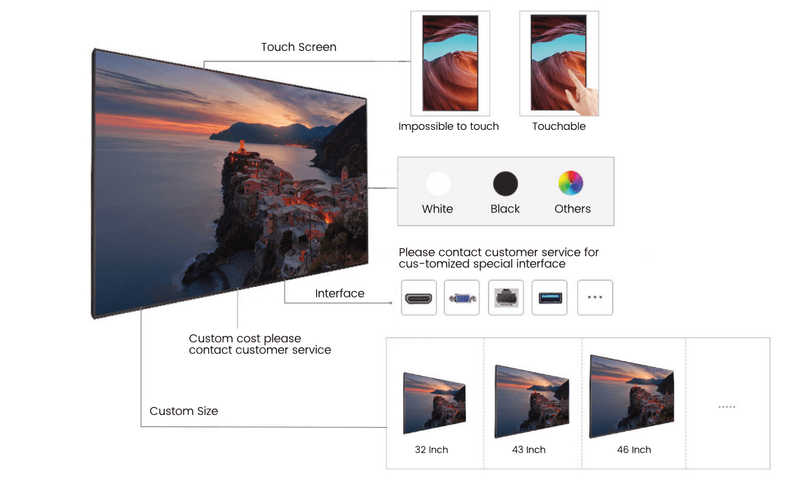

OEM CUSTOMIZATION

android lcd digital menu board for restaurants7
Product Parameters:

TECHNICAL PARAMETERS
Size 32/43/49/55/65/75/86”
Resolution 1920*1080(32-55”)/3840*2160(65-86”)
Backlight Adjustable Automatic Ambient Light Sensor
Aspect Ratio 16:9
Viewing Angle 178/178°
Brightness 2000 – 2500 cd/m2
Backlight type Direct LED
Operation Lifetime 50,000 hours
MECHANICAL
Coating Finishing Zinc Powder + Fine Grain Powder
Glass Tempered glass
Color Black/ White/ Grey, other RAL
color can be customized
Enclosure Material Galvanization Steel + Aluminum frame
Sounds 2*Waterproof speaker
POWER
Voltage Input AC110-240V
Frequency 50/60Hz
ENVIRONMENTAL
IP Rating IP65
Operating Humidity 10%-90%
Operating Temperature -20℃ – 50℃
Operating Environment Full outdoor
MEDIA (TV BOARD VERSION)
OS N/A
ROM N/A
USB input 1*USB 2.0
HDMI 1*HDMI input
Audio output 3.5mm earphone jack
GPU N/A
VGA *1
Memory N/A
MEDIA (ANDROID VERSION)
OS Android 5.1/7.1
ROM 8GB
USB input 2*USB 2.0
HDMI 1*HDMI output (HDMI input option)
Audio output 3.5mm earphone jack
CPU Rockchip 3188 /3268/3399
Ethernet 1*RJ45
Memory 2GB DDR3
Network 802.11 /b/g/n wifi, 3/4G for option
