-Activated in any device
-Can be activated in finger, gloved hand, and stylus activation
-To be activated with any device
-Video format: MP4/AVI/DIVA/XVI/VOB/DAT/MPG/RM/RMVB/MOV
-Available size: 32/43/49/55/65/75/86 inch
-High surface hardness level
-Capacitive touch, multi-points
-Type of frame: Closed frame
-Can be with computer configuration
-Various kinds of signal input ports
-Screen type: TFT, IPS(optional)
-Available size: 32/43/49/55/65/75/86 inch

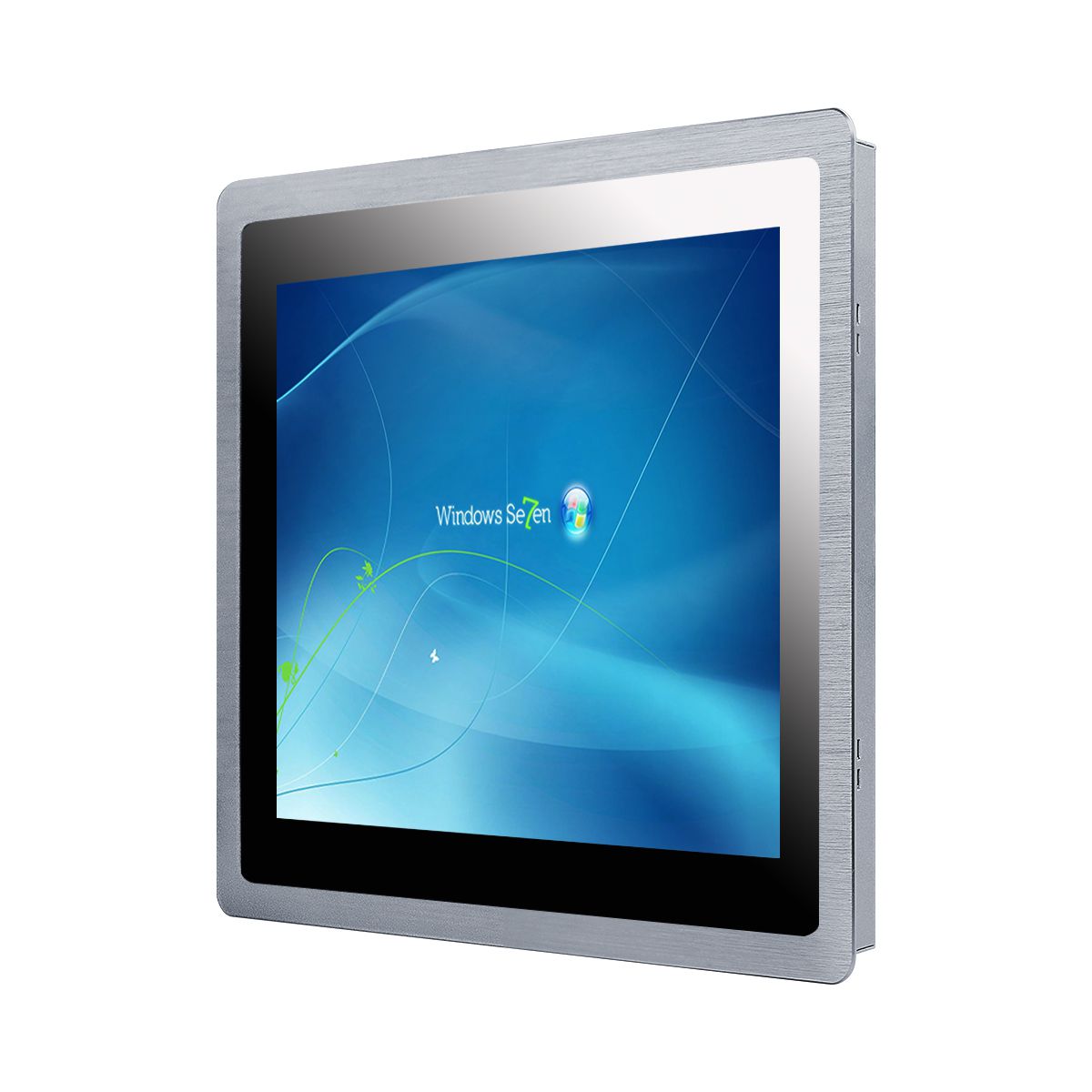

PID Capacitive Touch Monitors come with a 3mm narrow bezel, IP65 grade. This product line comes with a capacitive 10-finger multi-touch industrial panel with a wide temperature -10 ~ +60 range.
10-finger-multi touch projected capacitive touch panel
Stainless steel finish makes it ideal for tough applications and suitable for wash down areas
Fanless design for industrial touch monitor
3mm narrow bezel for industrial application, commercial devices
Stainless steel finish makes it ideal for tough applications and suitable for wash down areas.
IP65 front/ IP40 back grade standard water-proof, dust-proof for front panel

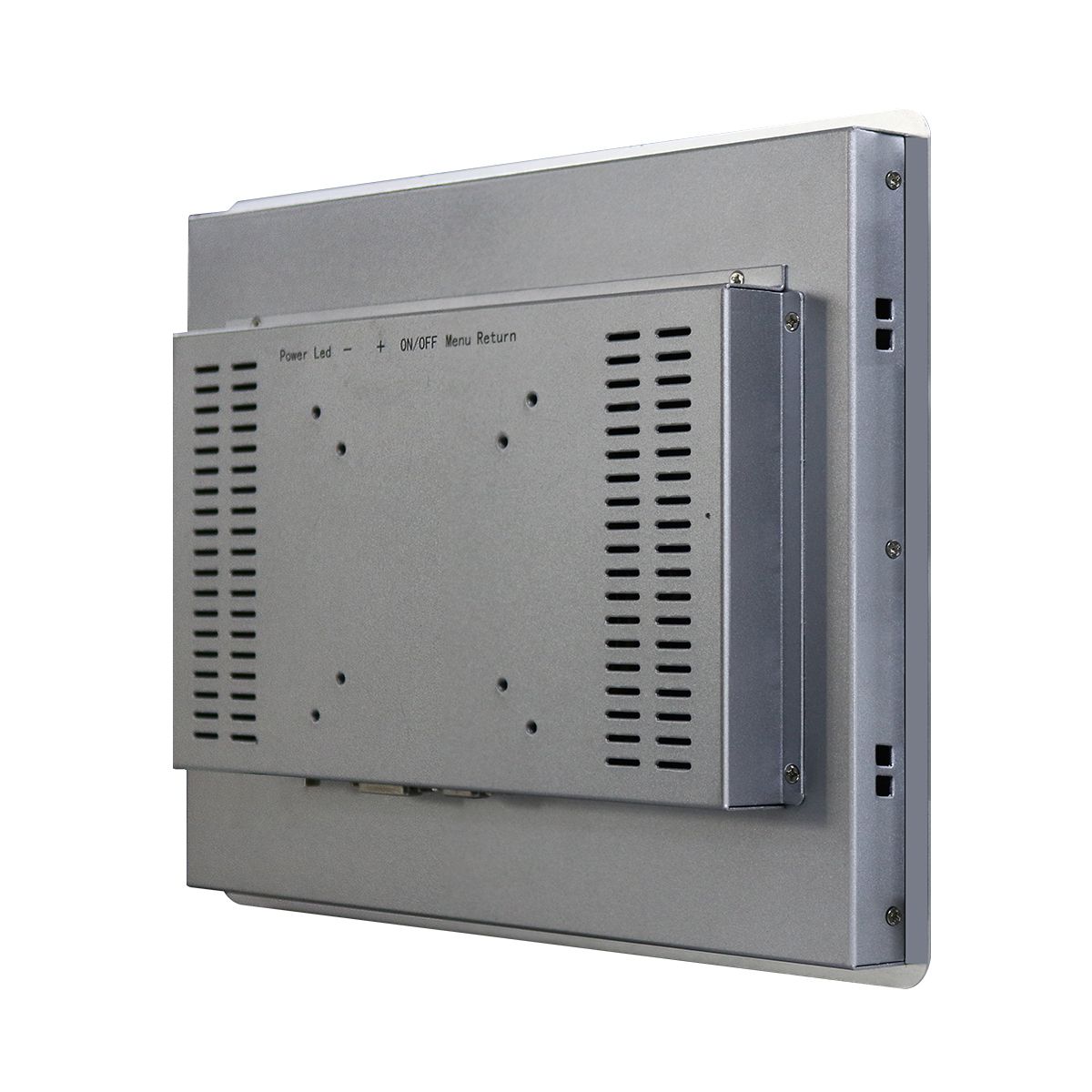

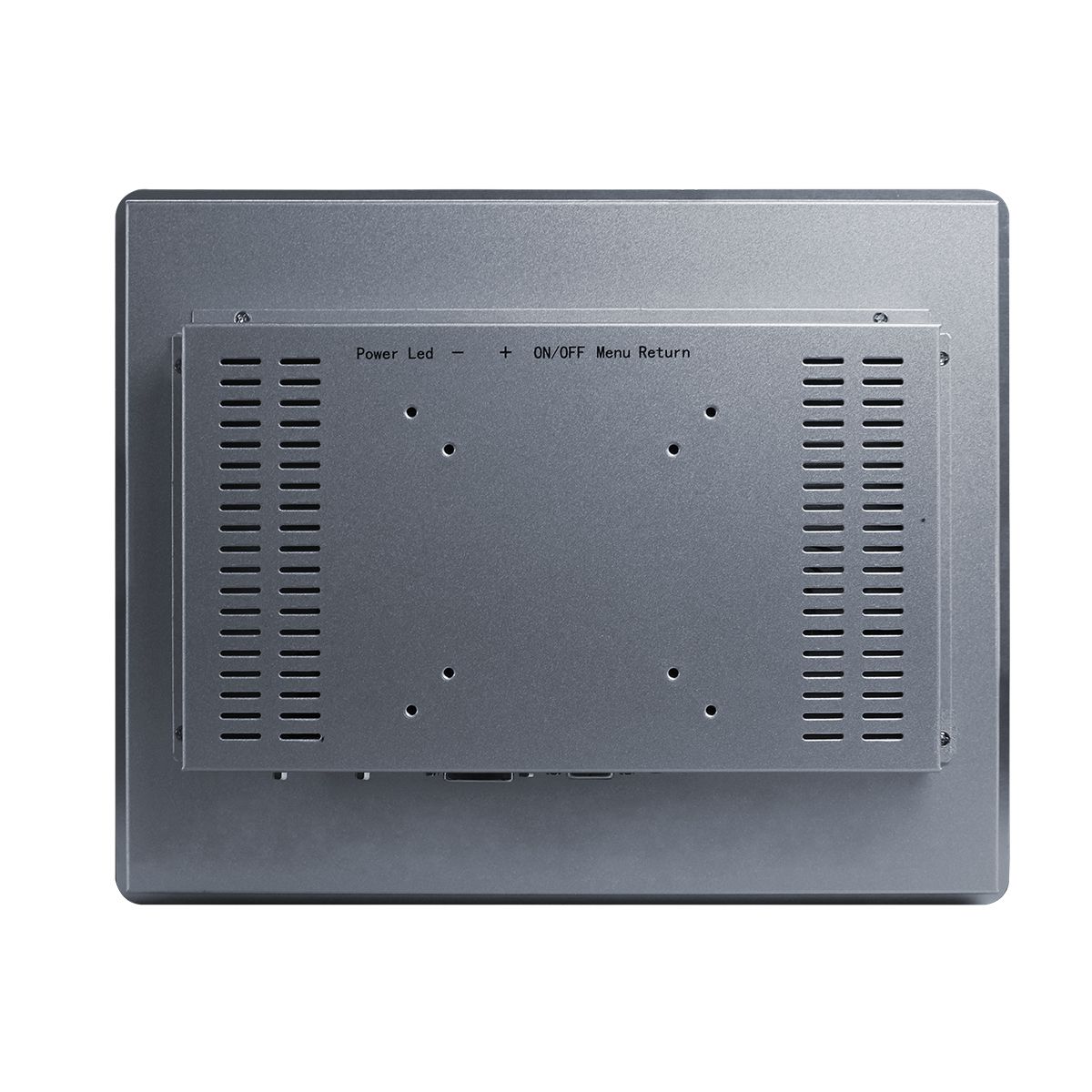

75/100mm VESA mount, Installation bar
Wide temperature -10 ~ +60 range industrial grade components
These devices are widely used in industrial automation equipment, sailing ship, high-speed train, intelligent terminal, gas station applications, access control systems, and armored car fields, etc.
| LCD Panel | |
| Display active screen size (mm) | 476.6×268.1 |
| IP grade | IP65 Front/ IP40 Back |
| Size（inch） | 21.5 |
| Backlight | LED |
| Resolution | 1920×1080 |
| Brightness | 350 |
| Aspect ratio | 16：9 |
| Contrast | 1200：1 |
| Viewing angle | 178°/178° |
| Colours displayed | 16.7M |
| Typical reaction time Tr/ Tf (ms) | 1.5/3.5 |
| Backlight / Backlight Lifetime (hours) | 50,000 |
| Touch Panel(Optional) | |
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Operation/Mechanical | |
| Operating Temperature (°C) | 0℃—50℃ |
| Humidity Range (RH) | 10% – 90% |
| Net weight (kg) | 8.3 |
| Gross weight (kg) | 9.3 |
| Housing material | Brushed aluminum |
| Housing (mm) L × W × H | 525.2×316.7×56 |
| Mounting | VESA 100 |
| Power | |
| Power Supply | DC 12V 4A |
| Power Consumption (W) | ≤25 |
| Stand-By Consumption (W) | <1 |
| Working Power (V) | 12 |

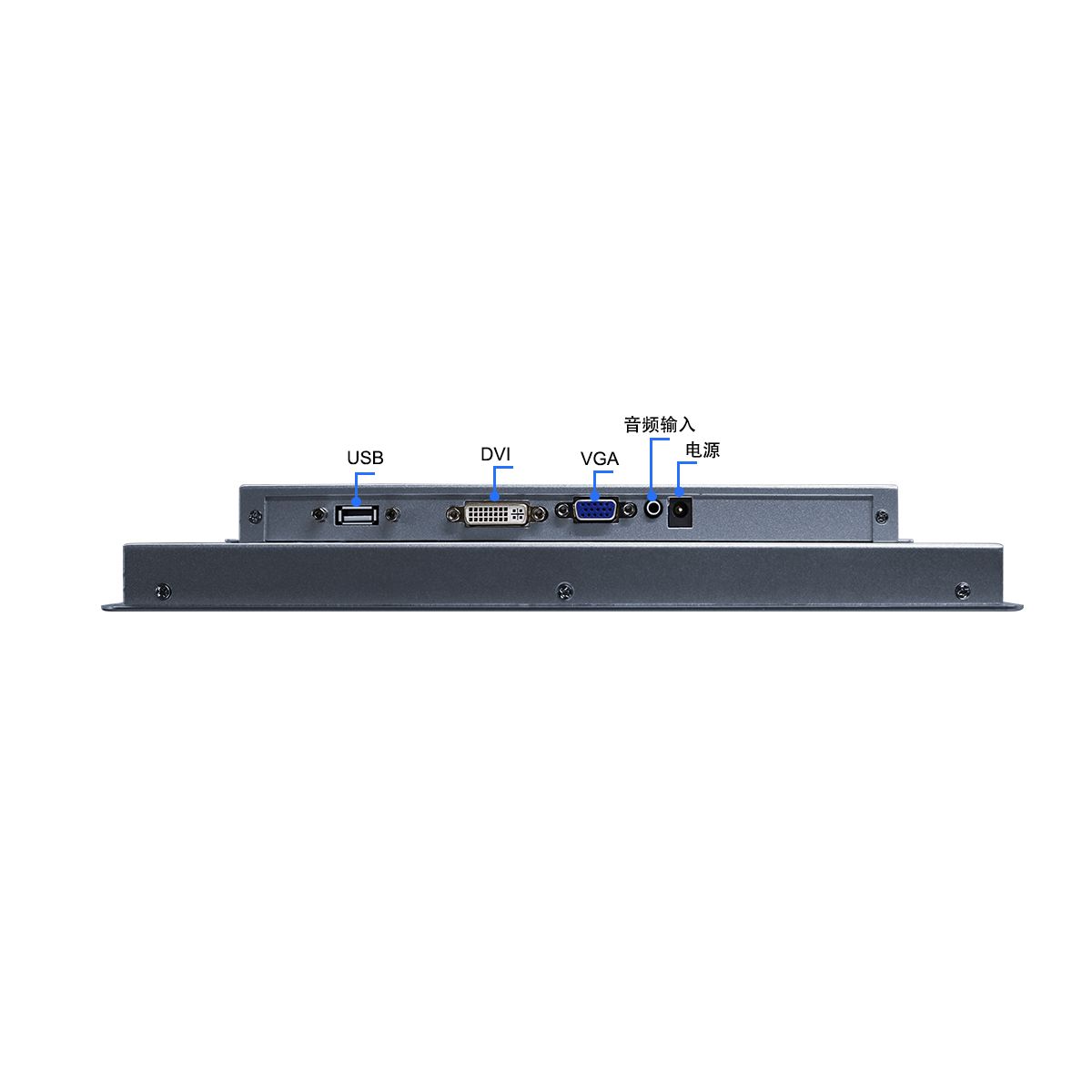

| External Connectors | |
| 1xUSD (for touch) | |
| 1xHDMI | |
| 1xVGA | |
