*Panel brand: CMO

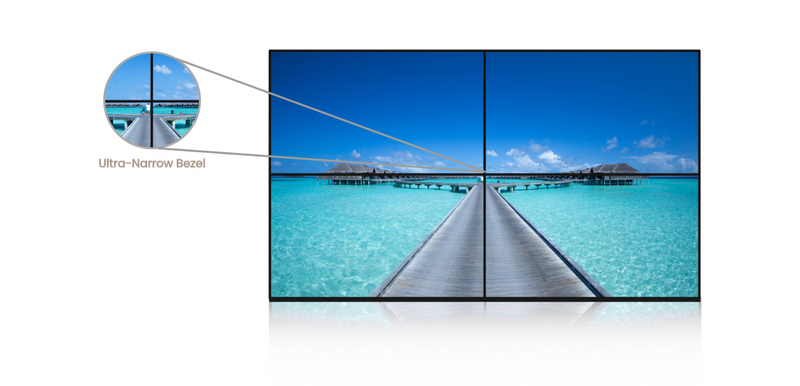

*Narrow design: the narrowest can reach 0.9mm, and it truly achieves the seamless
*Remote control function: by RS232 port and Ethernet connection for remote operation

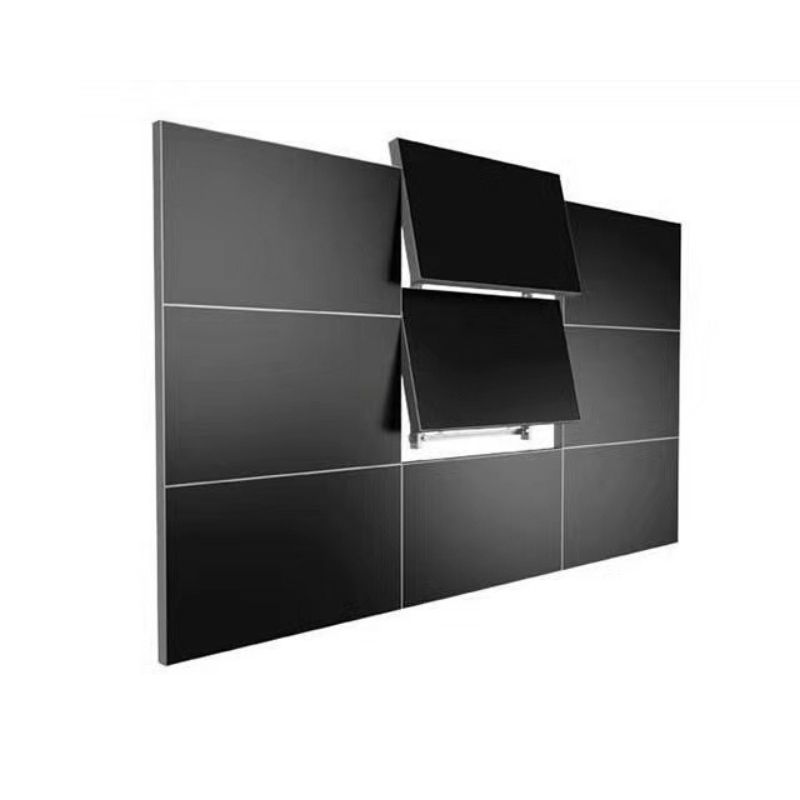

*Beautiful wall structure design, be convenient for installation and maintenance
*Continuous boot for 7*24 hours, deserve to trust

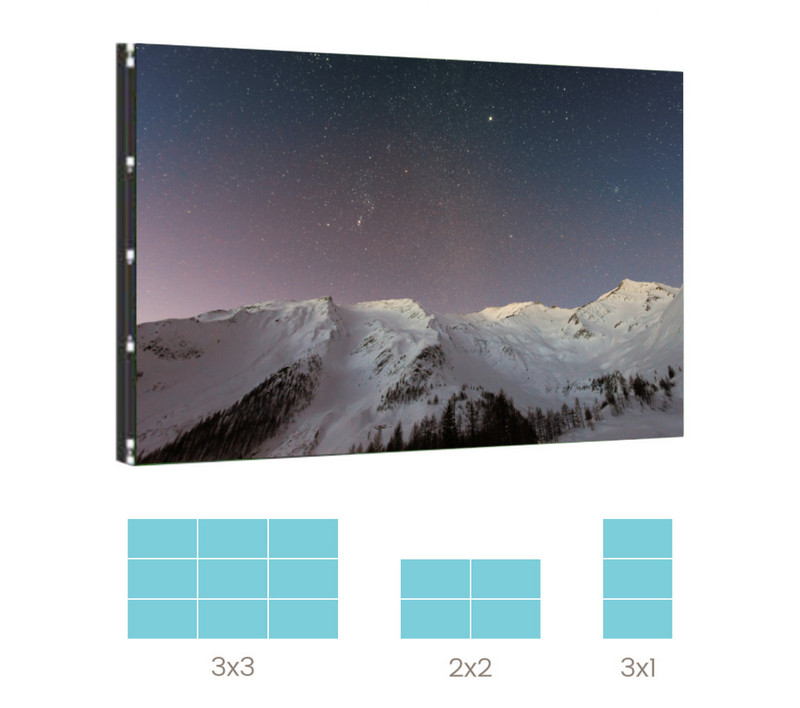

With the original CMO panel, the screen and the frame have a 3.5mm bilateral seam. Support standard VESA, Horizontal, Vertical, support many kinds of place demand. There are multimedia interactive touch screens, which can be chosen from dual screen and single screen. Freely split-screen playback, stand-alone, and network touchpad can be the free split-screen, multi-screen up to 4 screens. Video and pictures can be played at the same time. At the bottom of the screen support rolling words, company logo, date, calendar, time display, etc.
FHD 1920×1080
Contrast: 1200:1
500 nits brightness
RS-232 Daisy Chain
Excellent Performance Video Wall Displays for Video Wall applications
With wide bezel options from 0.88 – 3.5mm, LCD video wall displays can create large, visually stunning arrays for a wide variety of applications including retail stores, hospitals, universities, sports bars, corporate lobbies, casinos, and exhibits. Optimized for commercial applications, PID video wall is designed for video wall applications requiring long-term reliability and feature-rich functionality.
Configure Your Clarity Matrix Video Wall
The Clarity Matrix LCD Video Wall Calculator provides a simulated representative of your video wall along with important product specifications specific to your Clarify Matrix video wall design, including dimensions, weight, rack components.
Engineered for 24/7 Reliability Clarity Matrix’s unique design means that any system failure be easily accessible, reducing downtime and keeping your vital video wall up and running. With a 25 percent reduction in heat produced, Clarity Matrix video walls exceed performance expectations even in the most demanding environments. A redundant power supply module provides continuous operation even in the event of a power failure.
LCD Panel | |
Display active screen size (mm) | 1209.6(H) x 680.4(V) |
Panel Brand | CMO |
Size(inch) | 55 |
Backlight | LED |
Resolution | 1920*1080 |
Brightness | 500 |
Aspect ratio | 16:9 |
Contrast | 4000:1 |
Viewing angle | 178°/178° |
Colours displayed | 16.7M |
Typical reaction time | 8ms |
Backlight / Backlight Lifetime (hours) | 50,000 |
Operation/Mechanical | |
Operating Temperature (°C) | 0℃—50℃ |
Storage Temperature | -20℃—60℃ |
Humidity Range (RH) | 10% – 90% |
Housing Dimension (mm) | 1214.7(H)x685.5(V)*70.8mm |
Power | |
Power Supply | AC100—240V,50-60Hz |
Power Consumption (W) | ≤240W |
External Connectors | |
1 x USB | |
1 x RS232 IN | |
1 x RS232 OUT | |
1 x HDMIN IN | |
1 x VGA | |
1 x DVI | |
1 x IR |
