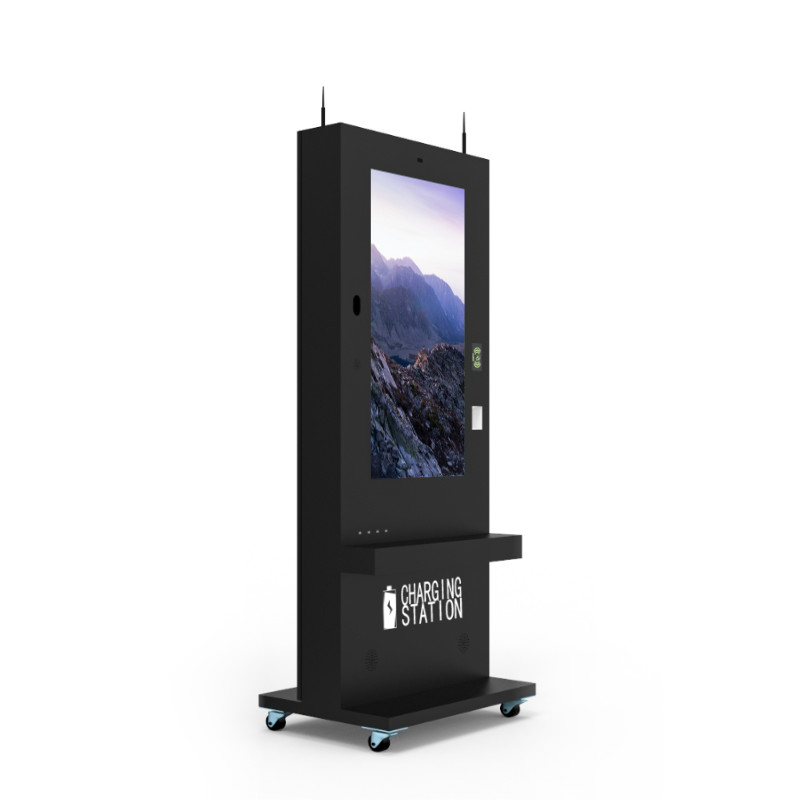

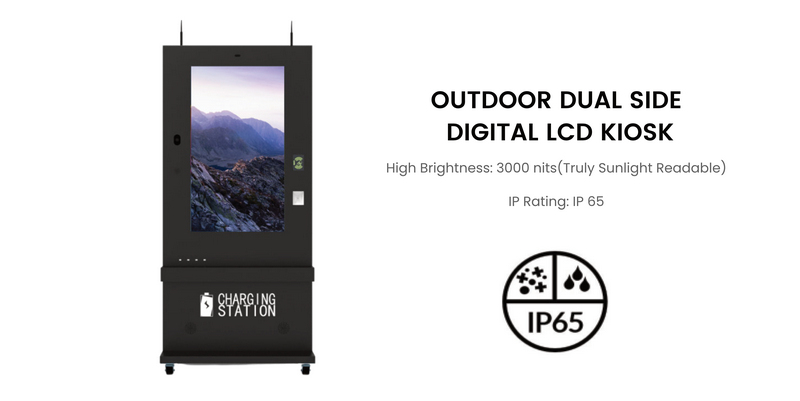

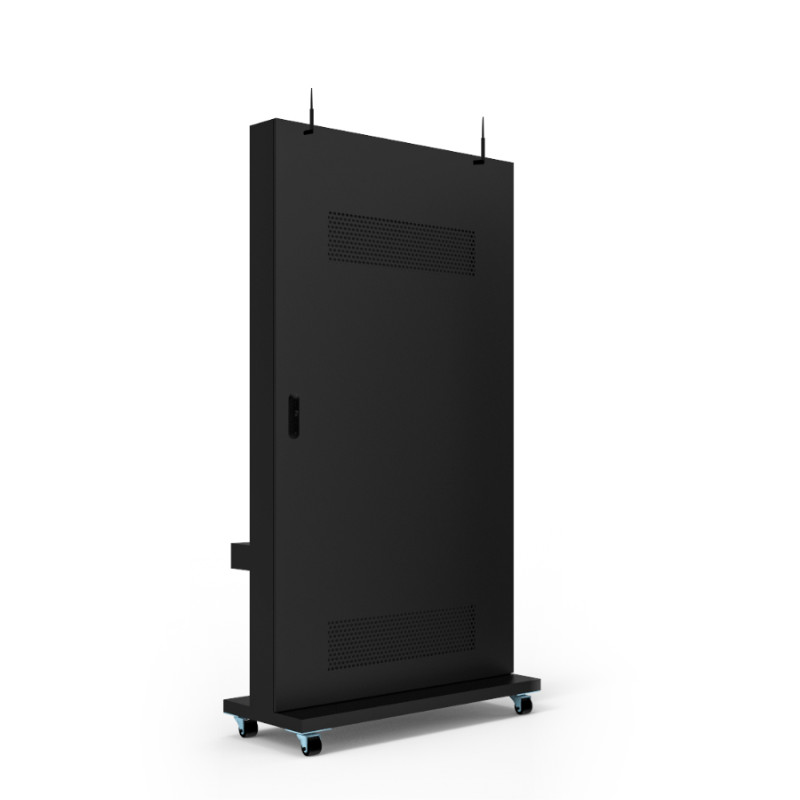

EV charging outdoor poster screen display’s application place is the outdoor EV charging station. This display is an outdoor device. Its selectable sizes are 32″/4″/49″/55″/65″/75″/86″. People can clearly see the content on the screen outdoors because of the high brightness design. At the same time, it also has an excellent waterproof and dust-proof effect and can adapt to the change of weather.
*Application place: outdoor EV charging station
*High brightness up to 2000cd/m2, readable under sunlight.
*Excellent waterproof effect
*Available size: 32”/43”/49”/55”/65”/75”/86”
✦ Available size: 32”/43”/49”/55”/65”/75”/86”
✦ 2500 nits High Brightness
✦ IP65 rating enclosure
✦ EV charging pole
✦ Android OS/Windows OS/TV board
✦ FHD & UHD display
| TECHNICAL PARAMETERS | |
| Size | 32/43/49/55/65/75/86” |
| Resolution | 1920*1080(32-55”)/3840*2160(65-86”) |
| Backlight Adjustable | Automatic Ambient Light Sensor |
| Aspect Ratio | 16:9 |
| Viewing Angle | 178/178° |
| Brightness | 2000 – 2500 cd/m2 |
| Backlight type | Direct LED |
| Operation Lifetime | 50,000 hours |
| MECHANICAL | |
| Coating Finishing | Zinc Powder + Fine Grain Powder |
| Glass | Tempered glass |
| Color | Black/ White/ Grey, other RAL color can be customized |
| Enclosure Material | Galvanization Steel + Aluminum frame |
| Sounds | 2*Waterproof speaker |
| POWER | |
| Voltage Input | AC110-240V |
| Frequency | 50/60Hz |
| ENVIRONMENTAL | |
| IP Rating | IP65 |
| Operating Humidity | 10%-90% |
| Operating Temperature | -20℃ – 50℃ |
| Operating Environment | Full outdoor |
| MEDIA (TV BOARD VERSION) | |
| OS | N/A |
| ROM | N/A |
| USB input | 1*USB 2.0 |
| HDMI | 1*HDMI input |
| Audio output | 3.5mm earphone jack |
| GPU | N/A |
| VGA | *1 |
| Memory | N/A |
| MEDIA (ANDROID VERSION) | |
| OS | Android 5.1/7.1 |
| ROM | 8GB |
| USB input | 2*USB 2.0 |
| HDMI | 1*HDMI output (HDMI input option) |
| Audio output | 3.5mm earphone jack |
| CPU | Rockchip 3188 /3268/3399 |
| Ethernet | 1*RJ45 |
| Memory | 2GB DDR3 |
| Network | 802.11 /b/g/n wifi, 3/4G for option |
