*Available size: 32/38/43/49/55/65/75/86 inch
*Full HD 1920*1080(28-55 inch), UHD 3840*2160(55-86 inch)
*Brightness Types 300-350 cd/m2, 500 and 700 cd/m2 optional
*10-points multi-touch, infrared / capacitive touch
*Offline version/internet cloud system version Android or Windows
*178° viewing angle
*Power: AC 110-240V, 50/60Hz
*Operating temperature between 0°C – 45°C
*Remote control: With Content Management Software
*Customized color is optional

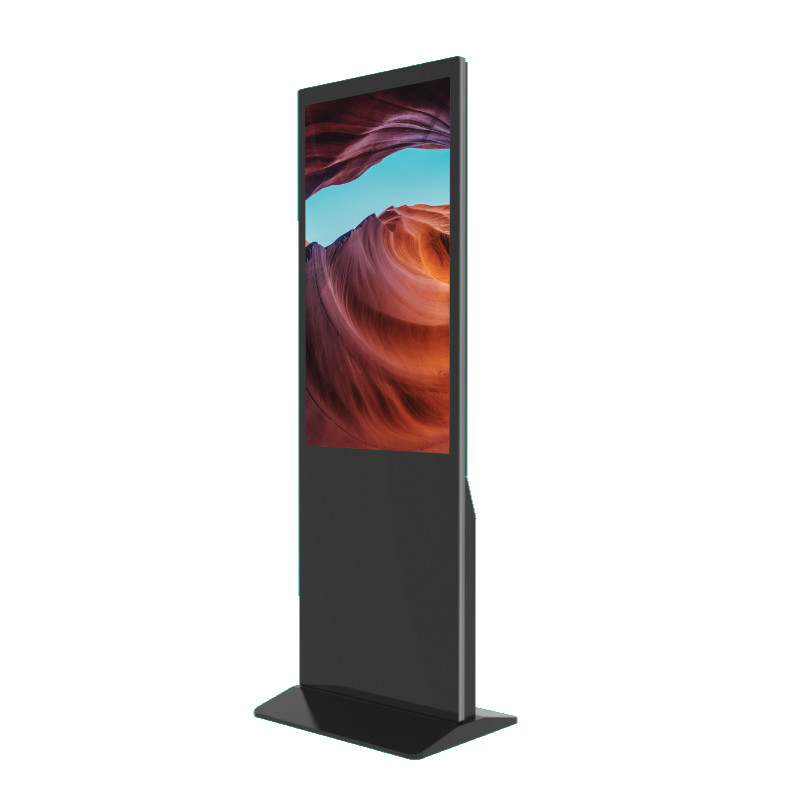

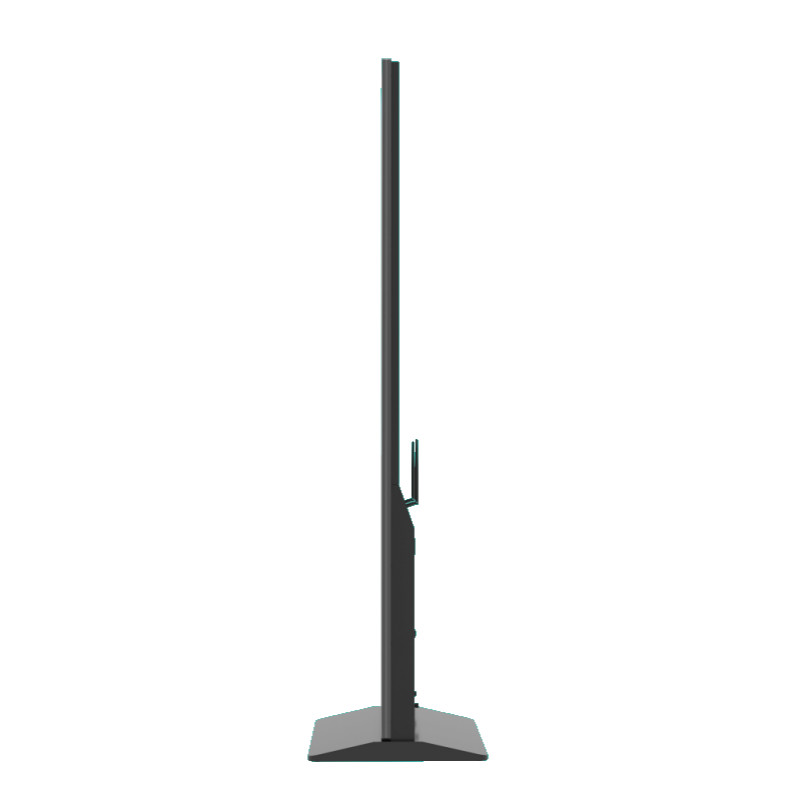

The Indoor totem classic series comes with different base and side style designs. You can place it in supermarkets, shopping malls, hospitals and other places. Ultra-thin body design brings you a brand-new thin feeling experience. Designed for use in commercial applications, this screen can run 24/7. With 300nits the IPS panel shines brighter than any indoor LCD display while delivering superior image & sound quality and colour depth at 178° ultra-wide viewing angle in portrait orientation.
*Available size: 32”/38”/43”/49”/55”/65”/75”/86”
*Full HD 1920*1080(28-55 inch), UHD 3840*2160(55-86 inch)
*Brightness(Type): 300-350 cd/m2, 500 and 700 cd/m2 (optional)
*Touch: 10-points multi-touch, infrared/capacitive touch
*OS: Android/Windows/TV board
*Contrast: 16:9
*View angle: 178
*Power: AC 110-240V, 50/60Hz
*Operating temperature: 0°C – 45°C
*Remote control: With Content Management Software

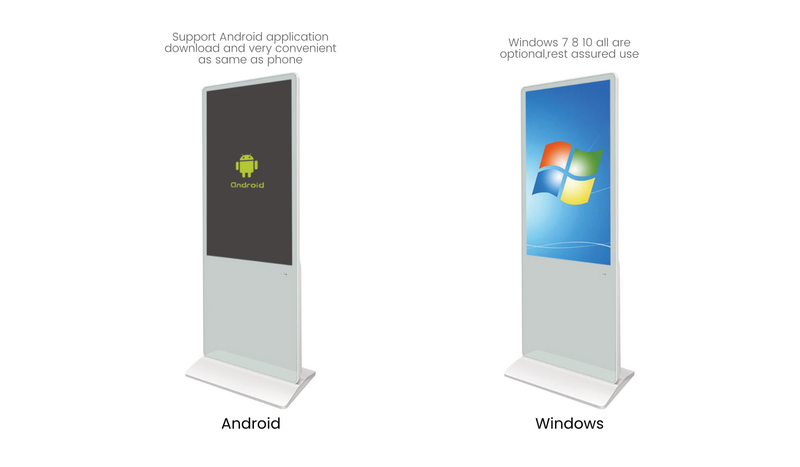

Support multi system
Offline version/internet cloud system version Android or Windows

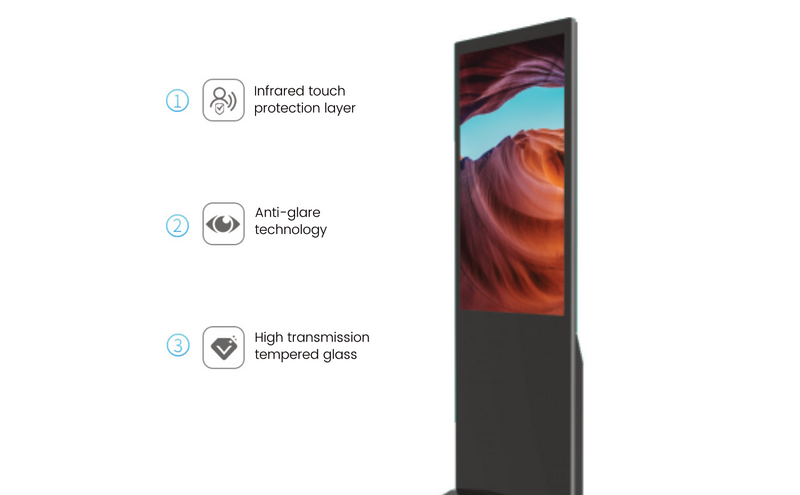

Tempered glass

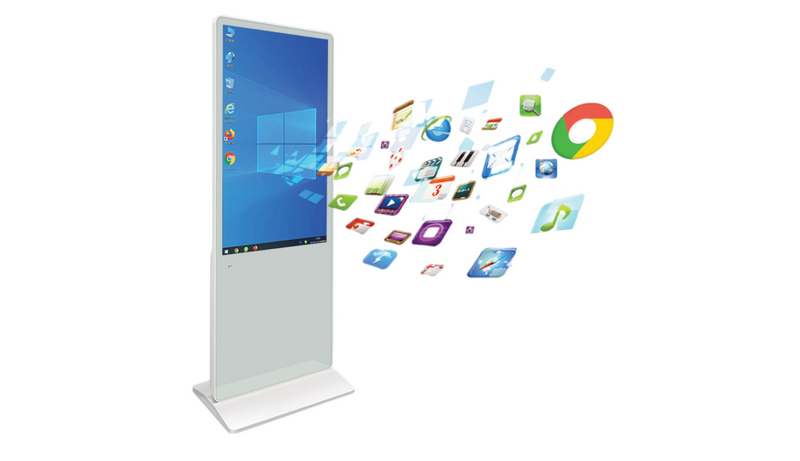

Download software
Like a computer, you can download software, such as Google browsing

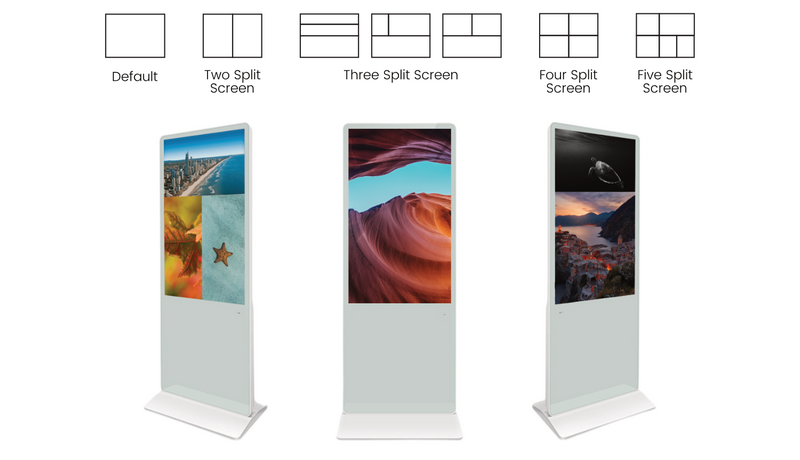

Intelligent Split Screen
Picture /Video / Music could be customizable

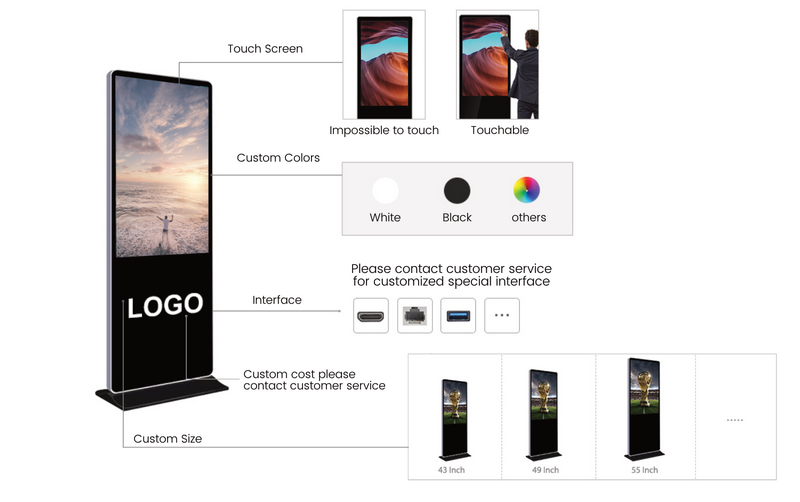

OEM Customization
| TECHNICAL PARAMETERS | |
| Size | 32/43/49/55/65/75/86” |
| Resolution | 1920*1080(32-55”)/3840*2160(65-86”) |
| Backlight Adjustable | Automatic Ambient Light Sensor |
| Aspect Ratio | 16:9 |
| Viewing Angle | 178/178° |
| Brightness | 2000 – 2500 cd/m2 |
| Backlight type | Direct LED |
| Operation Lifetime | 50,000 hours |
| MECHANICAL | |
| Coating Finishing | Zinc Powder + Fine Grain Powder |
| Glass | Tempered glass |
| Color | Black/ White/ Grey, other RAL color can be customized |
| Enclosure Material | Galvanization Steel + Aluminum frame |
| Sounds | 2*Waterproof speaker |
| POWER | |
| Voltage Input | AC110-240V |
| Frequency | 50/60Hz |
| ENVIRONMENTAL | |
| IP Rating | IP65 |
| Operating Humidity | 10%-90% |
| Operating Temperature | -20℃ – 50℃ |
| Operating Environment | Full outdoor |
| MEDIA (TV BOARD VERSION) | |
| OS | N/A |
| ROM | N/A |
| USB input | 1*USB 2.0 |
| HDMI | 1*HDMI input |
| Audio output | 3.5mm earphone jack |
| GPU | N/A |
| VGA | *1 |
| Memory | N/A |
| MEDIA (ANDROID VERSION) | |
| OS | Android 5.1/7.1 |
| ROM | 8GB |
| USB input | 2*USB 2.0 |
| HDMI | 1*HDMI output (HDMI input option) |
| Audio output | 3.5mm earphone jack |
| CPU | Rockchip 3188 /3268/3399 |
| Ethernet | 1*RJ45 |
| Memory | 2GB DDR3 |
| Network | 802.11 /b/g/n wifi, 3/4G for option |
