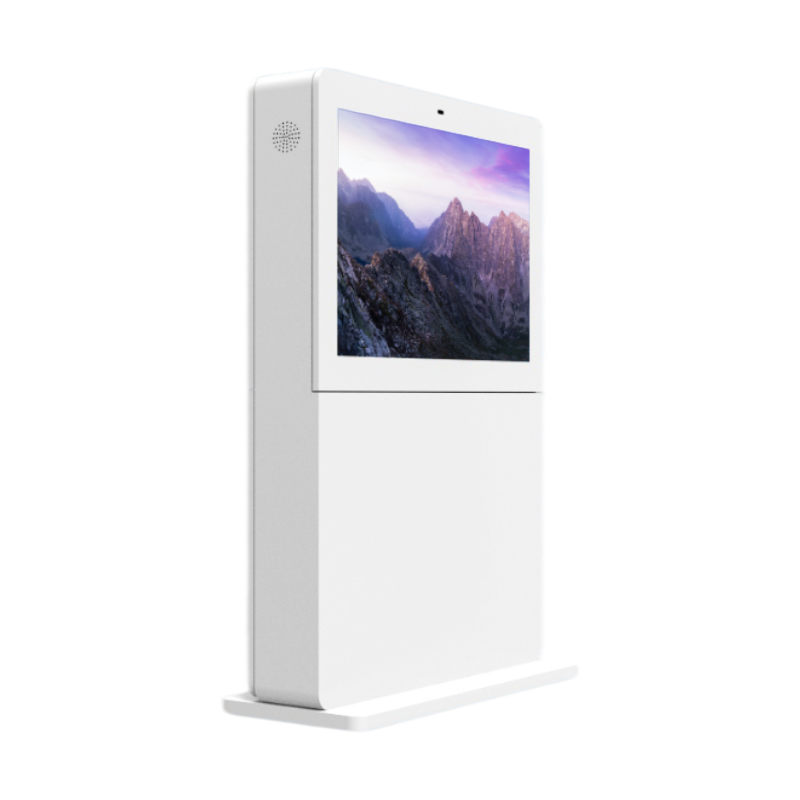

Free standing full outdoor digital signage is a digital sign used outdoors. Its independent characteristics make it easy to install and move. At the same time, as an outdoor machine, its high brightness is convenient for people to read. It supports Android OS/Windows OS/TV board. The design of IP65 makes it have an excellent waterproof and dust-proof effect.
*Free standing
*IP65 rating enclosure
*Use for outdoor environment
*High brightness, sunlight readable
✦ Available size: 32”/43”/49”/55”/65”/75”/86”
✦ 2500 nits High Brightness
✦ IP65 rating enclosure
✦ Android OS / Windows OS / TV board
✦ FHD & UHD display
Full outdoor environmental design (high temperature, low temperature, rain, and sun) All products must be passed through the aging test in 24 hours and a waterproof & dust-proof test.
Smart temperature control system operation temperature: -20℃ ~ +50℃
Various colors can choose
TECHNICAL PARAMETERS | |
Size | 32/43/49/55/65/75/86” |
Resolution | 1920*1080(32-55”)/3840*2160(65-86”) |
Backlight Adjustable | Automatic Ambient Light Sensor |
Aspect Ratio | 16:9 |
Viewing Angle | 178/178° |
Brightness | 2000 – 2500 cd/m2 |
Backlight type | Direct LED |
Operation Lifetime | 50,000 hours |
MECHANICAL | |
Coating Finishing | Zinc Powder + Fine Grain Powder |
Glass | Tempered glass |
Color | Black/ White/ Grey, other RAL color can be customized |
Enclosure Material | Galvanization Steel + Aluminum frame |
Sounds | 2*Waterproof speaker |
POWER | |
Voltage Input | AC110-240V |
Frequency | 50/60Hz |
ENVIRONMENTAL | |
IP Rating | IP65 |
Operating Humidity | 10%-90% |
Operating Temperature | -20℃ – 50℃ |
Operating Environment | Full outdoor |
MEDIA (TV BOARD VERSION) | |
OS | N/A |
ROM | N/A |
USB input | 1*USB 2.0 |
HDMI | 1*HDMI input |
Audio output | 3.5mm earphone jack |
GPU | N/A |
VGA | *1 |
Memory | N/A |
MEDIA (ANDROID VERSION) | |
OS | Android 5.1/7.1 |
ROM | 8GB |
USB input | 2*USB 2.0 |
HDMI | 1*HDMI output (HDMI input option) |
Audio output | 3.5mm earphone jack |
CPU | Rockchip 3188 /3268/3399 |
Ethernet | 1*RJ45 |
Memory | 2GB DDR3 |
Network | 802.11 /b/g/n wifi, 3/4G for option |
