*Panel brand: LG

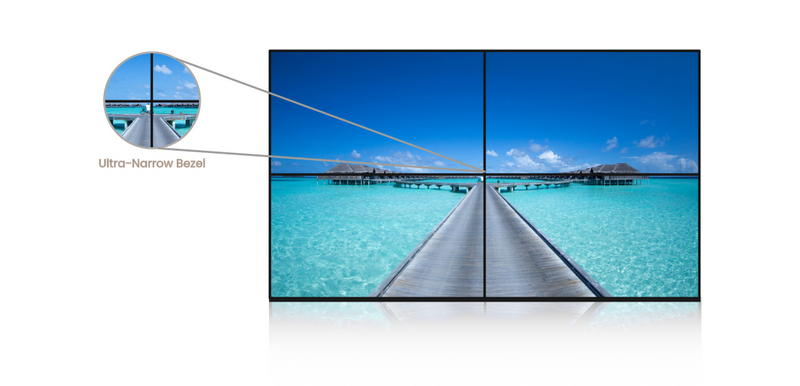

*The narrow bezel design reach 3.5mm
*Support 365days non stop boot, the blacklight life is up to 60,000hours
*Splicing mode is optional
*Support error and compensation function of video wall pictures

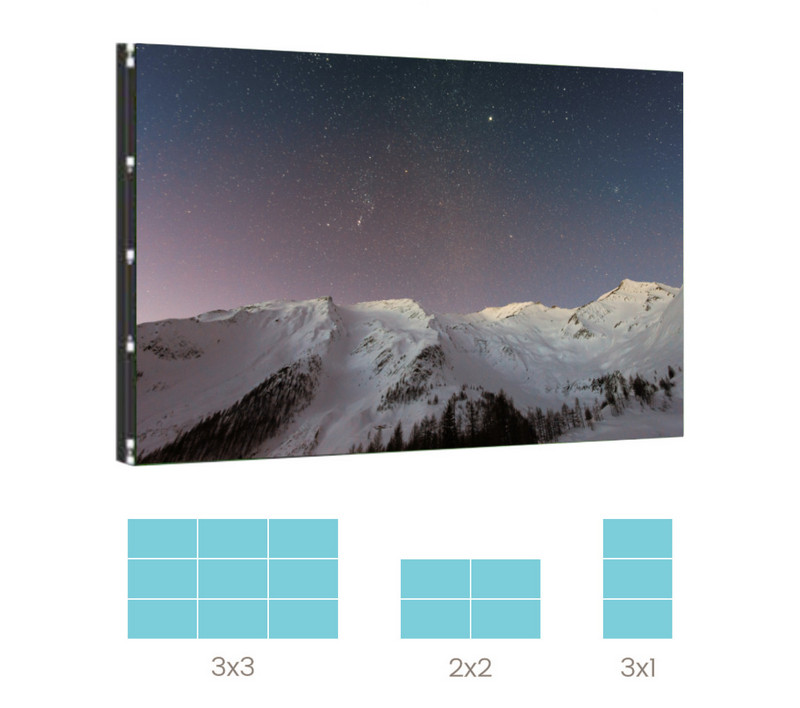

*Modular design according to customer demand(M*N)
*Diversification of the display mode
With the original LG panel, the screen and the frame have a 3.5mm bilateral seam. 55 inch HD visual angle splicing screen, with 3D noise deduction, multi signal inputs, IPS commercial grade panel. 4K super clear resolution, the picture is exquisite color saturation real perspex.178° super wide angle of view, extend your visual experience, omni-directional appreciation, image without distortion, color without distortion. Ultra-narrow border design, the picture is more complete.
FHD 1920×1080
Contrast: 1200:1
500 nits brightness
RS-232 Daisy Chain
Excellent Performance Video Wall Displays for Video Wall applications
With wide bezel options from 0.88 – 3.5mm, LCD video wall displays can create large, visually stunning arrays for a wide variety of applications including retail stores, hospitals, universities, sports bars, corporate lobbies, casinos, and exhibits. Optimized for commercial applications, PID video wall is designed for video wall applications requiring long-term reliability and feature-rich functionality.
Configure Your Clarity Matrix Video Wall
The Clarity Matrix LCD Video Wall Calculator provides a simulated representative of your video wall along with important product specifications specific to your Clarify Matrix video wall design, including dimensions, weight, rack components.
Engineered for 24/7 Reliability Clarity Matrix’s unique design means that any system failure be easily accessible, reducing downtime and keeping your vital video wall up and running. With a 25 percent reduction in heat produced, Clarity Matrix video walls exceed performance expectations even in the most demanding environments. A redundant power supply module provides continuous operation even in the event of a power failure.
LCD Panel | |
Display active screen size (mm) | 1073.8*604.0mm |
Panel Brand | LG |
Size(inch) | 49” |
Backlight | LED |
Resolution | 1920×1080 |
Brightness | 500 |
Aspect ratio | 16:9 |
Contrast | 4000:1 |
Viewing angle | 178°/178° |
Colours displayed | 16.7M |
Typical reaction time | 8ms |
Backlight / Backlight Lifetime (hours) | 50,000 |
Operation/Mechanical | |
Operating Temperature (°C) | 0℃—50℃ |
Storage Temperature | -20℃—60℃ |
Humidity Range (RH) | 10% – 90% |
Housing Dimension (mm) | 1077.6*607.8*63.70mm |
Power | |
Power Supply | AC100—240V,50-60Hz |
Power Consumption (W) | ≤240W |
External Connectors | |
1 x USB | |
1 x RS232 IN | |
1 x RS232 OUT | |
1 x HDMIN IN | |
1 x VGA | |
1 x DVI | |
1 x IR |
