*Designed with optical bonding technology, which makes the display is brighter
*Also can make it smaller and narrow screen bezel, less depth of slim body structure
*IK10 level anti-crash
*IP65 waterproof rating
*3000-4000 nits high brightness display for easy sun-light readable
*UHD & FHD display
*Ambient auto brightness adjusts
*Industrial grade panel with no screen black out
*Available size: 32/43/49/55/65/75/86 inch
*High surface hardness level

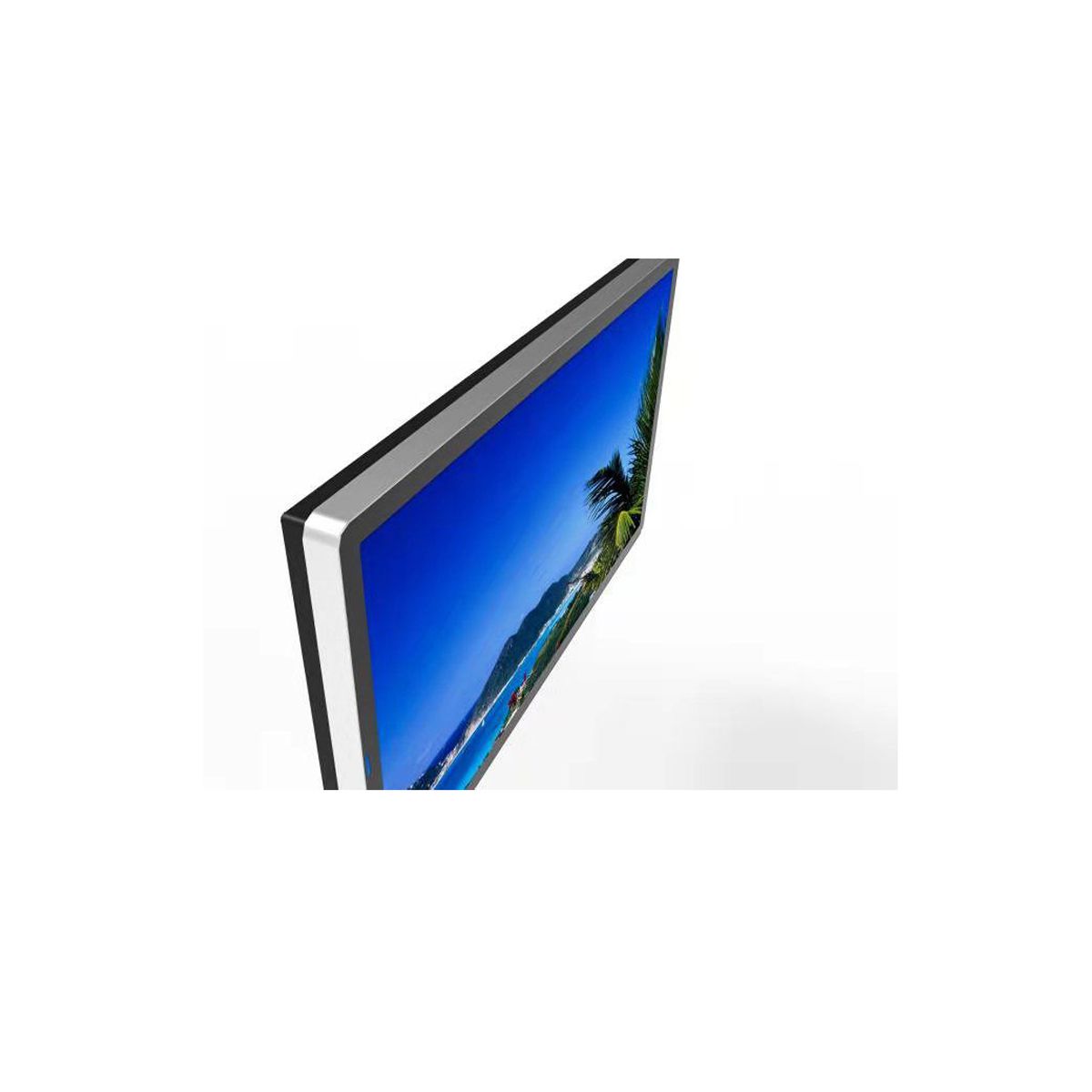

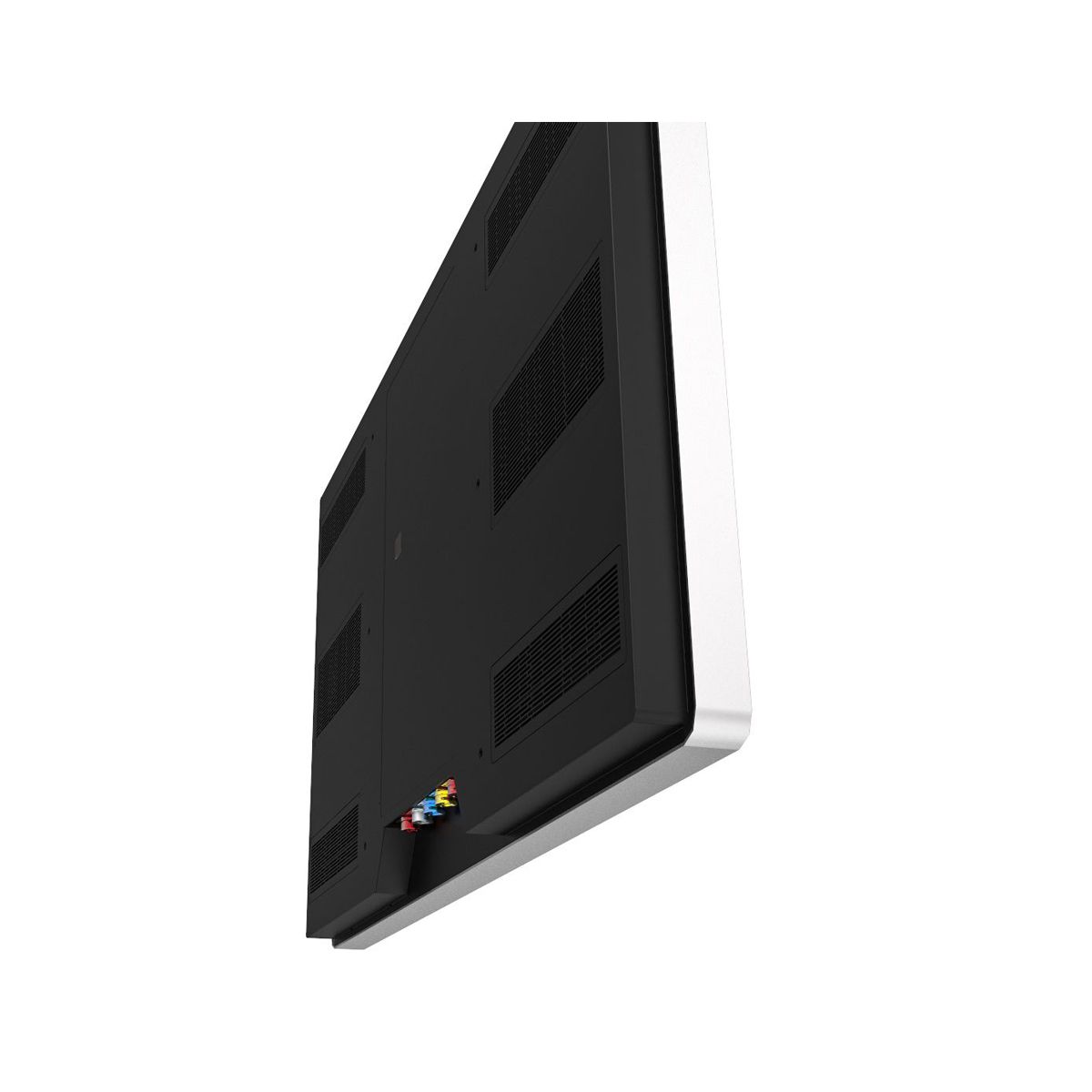

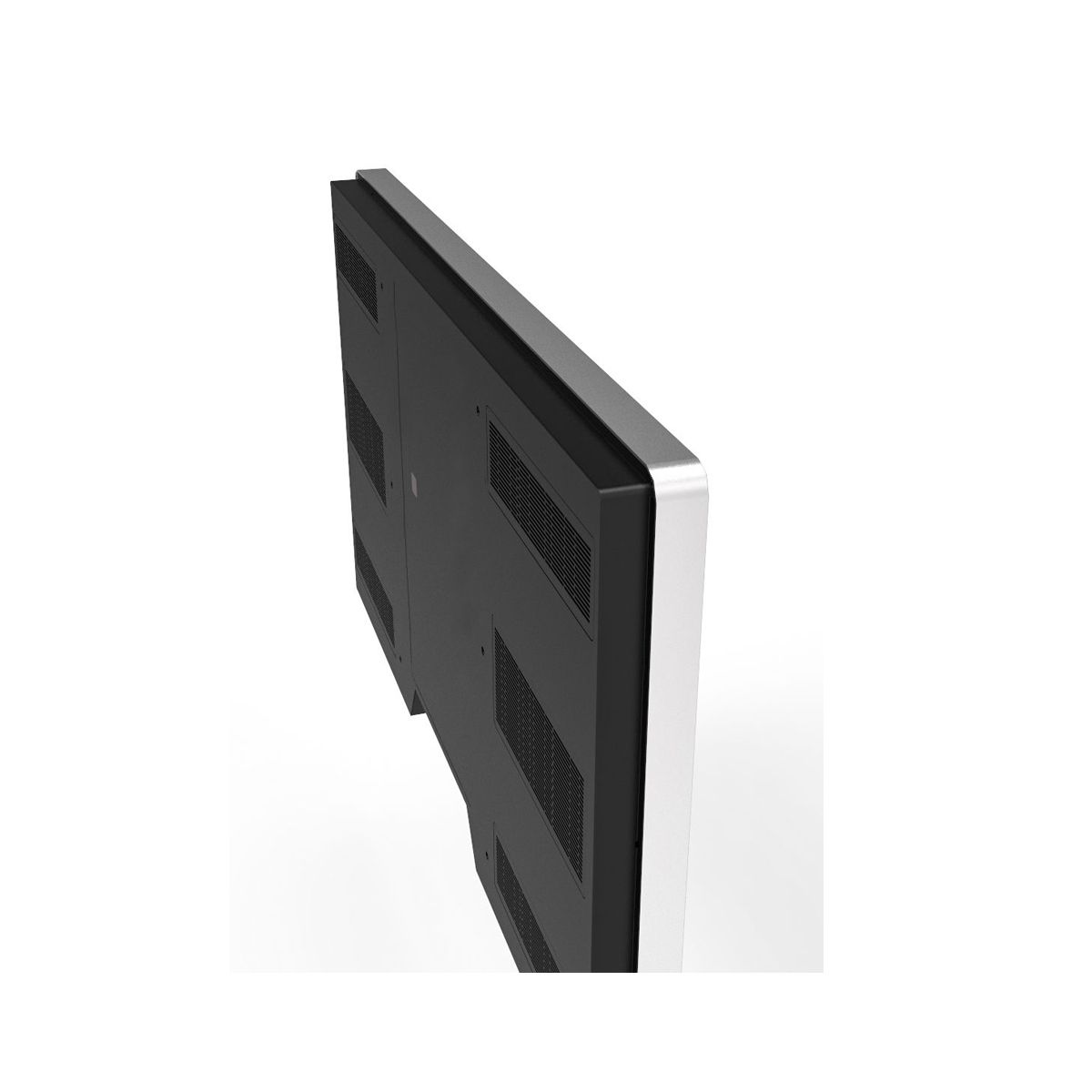

PID outdoor wall mounted optical bonding displays are built from the ground up to be used outside, With 3000nits high brightness. The built-in ambient light sensor will automatically adjust the display’s brightness for optimum viewing in sun or shade, and during the day or at night. The display can be used in temperatures -10 ~ +85°C. It’s ideal for outdoor locations, public areas, parking lots, wayfinding points, restaurants, university menu boards, etc.
*Slim design with 90mm thickness
*LOCA optical bonding technology which makes more dynamic display performance
*A+ industrial panel with wide operating temperature. The panel with a 110°C Hi-Tri liquid

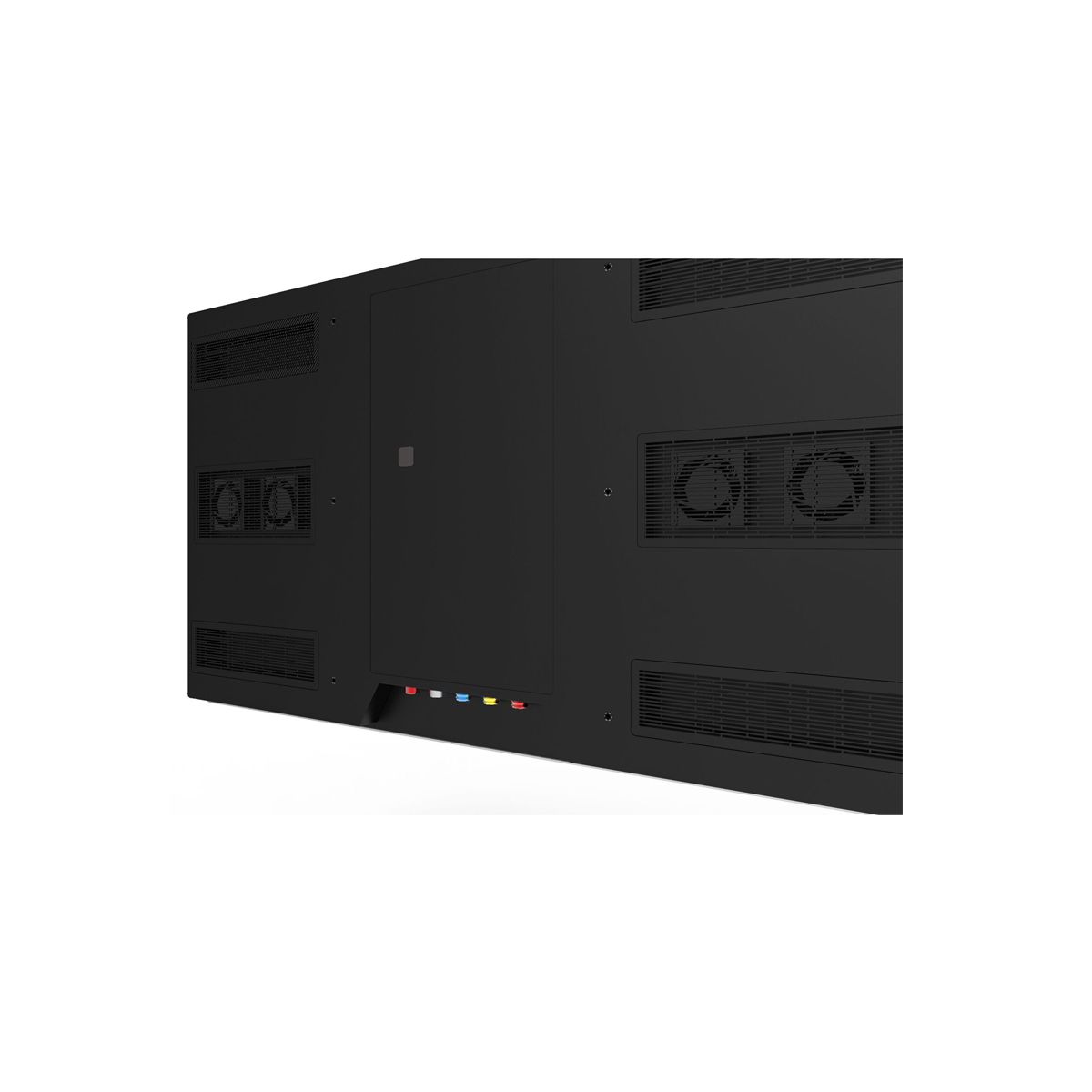

*Smart Fan Cooling System
*55 Inch LCD Screen
*High Brightness:3000nits
*IP65-Fully Enclosed System
*FHD 1920×1080
| LCD Panel | |
| CPU | RK3288 |
| Memory | 4GB DDR3 |
| Storage | 16GB EMMC Flash |
| Network | 10M/100M Network; W-LAN |
| LCD Panel | |
| Display active screen size (mm) | 1213×683 (55″) |
| IP grade | IP65 |
| Size（inch） | 55 / 65 |
| Backlight | LED |
| Resolution | 1920 * 1080 |
| Brightness | 2500 nits(auto adjust from 600 to 2500 nits, 3000 nits can option) |
| Aspect ratio | 16：9 |
| Contrast | 1200：1 |
| Viewing angle | 178°/178° |
| Colours displayed | 1.07B |
| Backlight / Backlight Lifetime (hours) | LED / 50,000 |
| Operation/Mechanical | |
| Operating Temperature (°C) | -15℃—50℃ |
| Storage Temperature | -20℃—60℃ |
| Screen Temperature | Over 95℃ |
| Humidity Range (RH) | 10% – 90% |
| Net weight (kg) | 40Kgs for 55″, 80Kgs for 65″ |
| Optical bonding | Optically bonded cover glass to LCD Panel |
| Surface Treatment | 6 mm AR(Anti-reflection) cover glass, light transmittance is exceed 95% |
| Housing material | Aluminum |
| Housing (mm) L × W × H | 1300x770x90.5 |
| Power | |
| Power Supply | AC100—240V |
| Power Consumption (W) | 120 – 500 W |
| External Connectors | |
| HDMI | |
| USB | |
| RS232 | |
