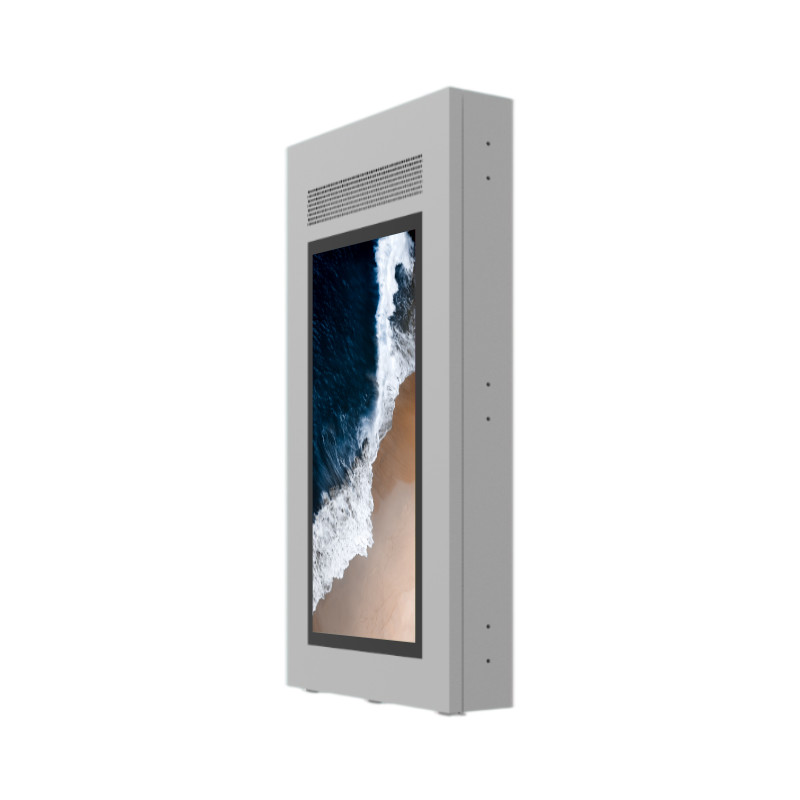

All-weather outdoor embedded high brightness screen is used in outdoor environments, such as bus stops. 2500 high brightness, suitable for reading in sunlight. The design of IP65 is conducive to excellent adaptation to the outdoor environment and weather and has an excellent waterproof and dust-proof effect. The embedded design facilitates installation and disassembly. It has FHD & UHD display and can use the Android operating system/Windows operating system/TV board.
*Use for outdoor environment
*IP65 rating enclosure
*All-weather can be adapted
*Good waterproof effect
✦ Available size: 28”/32”/43”/49”/55”/65”/75”/86”
✦ Embedded structure design, easy installation
✦ 2500 nits High Brightness

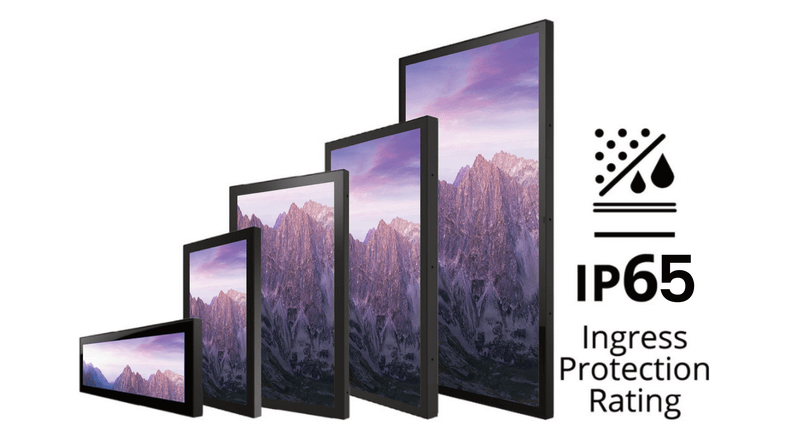

✦ IP65 rating enclosure
✦ Android OS / Windows OS / TV board
✦ FHD & UHD display
High Brightness: 2500 nits (Truly brightness while Sunlight Readable)
| TECHNICAL PARAMETERS | |
| Size | 32/43/49/55/65/75/86” |
| Resolution | 1920*1080(32-55”)/3840*2160(65-86”) |
| Backlight Adjustable | Automatic Ambient Light Sensor |
| Aspect Ratio | 16，9 |
| Viewing Angle | 178/178° |
| Brightness | 2000 – 2500 cd/m2 |
| Backlight type | Direct LED |
| Operation Lifetime | 50,000 hours |
| MECHANICAL | |
| Coating Finishing | Zinc Powder + Fine Grain Powder |
| Glass | Tempered glass |
| Color | Black/ White/ Grey, other RAL color can be customized |
| Enclosure Material | Galvanization Steel + Aluminum frame |
| Sounds | 2*Waterproof speaker |
| POWER | |
| Voltage Input | AC110-240V |
| Frequency | 50/60Hz |
| ENVIRONMENTAL | |
| IP Rating | IP65 |
| Operating Humidity | 10%-90% |
| Operating Temperature | -20℃ – 50℃ |
| Operating Environment | Full outdoor |
| MEDIA (TV BOARD VERSION) | |
| OS | N/A |
| ROM | N/A |
| USB input | 1*USB 2.0 |
| HDMI | 1*HDMI input |
| Audio output | 3.5mm earphone jack |
| GPU | N/A |
| VGA | *1 |
| Memory | N/A |
| MEDIA (ANDROID VERSION) | |
| OS | Android 5.1/7.1 |
| ROM | 8GB |
| USB input | 2*USB 2.0 |
| HDMI | 1*HDMI output (HDMI input option) |
| Audio output | 3.5mm earphone jack |
| CPU | Rockchip 3188 /3268/3399 |
| Ethernet | 1*RJ45 |
| Memory | 2GB DDR3 |
| Network | 802.11 /b/g/n wifi, 3/4G for option |
