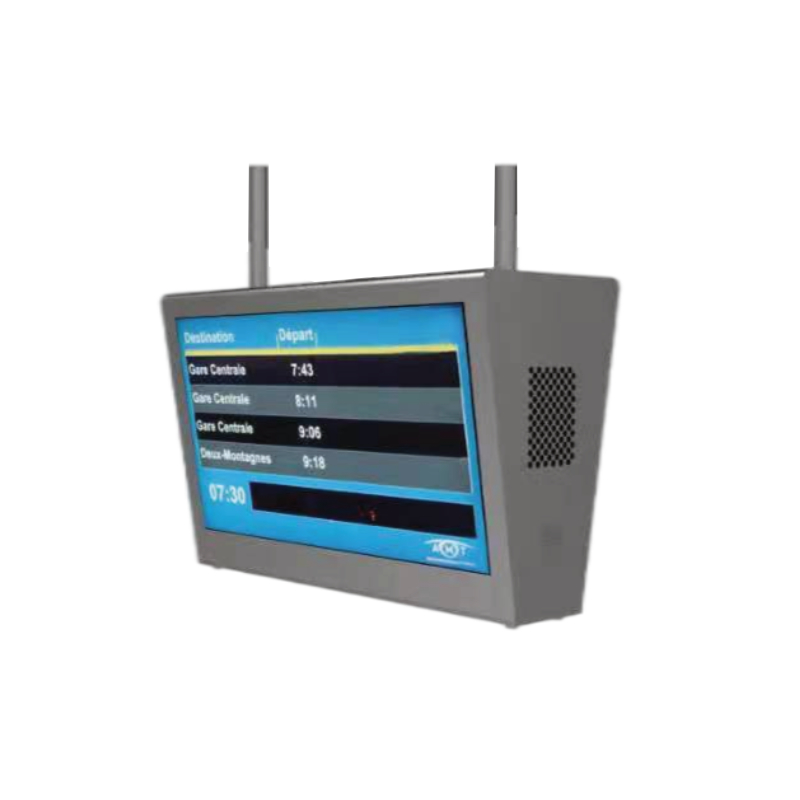

Outdoor Passenger Information Display is usually used in railway stations and other places. Passenger information can be seen on the screen. The available sizes are 32”/43”/49”/55”/65”/75”/86”. The structural design of suspension is conducive to fast and simple install. IP65 and high brightness design can meet the needs of outdoor use. IP65 has an excellent waterproof and dust-proof effect to adapt to outdoor weather changes.

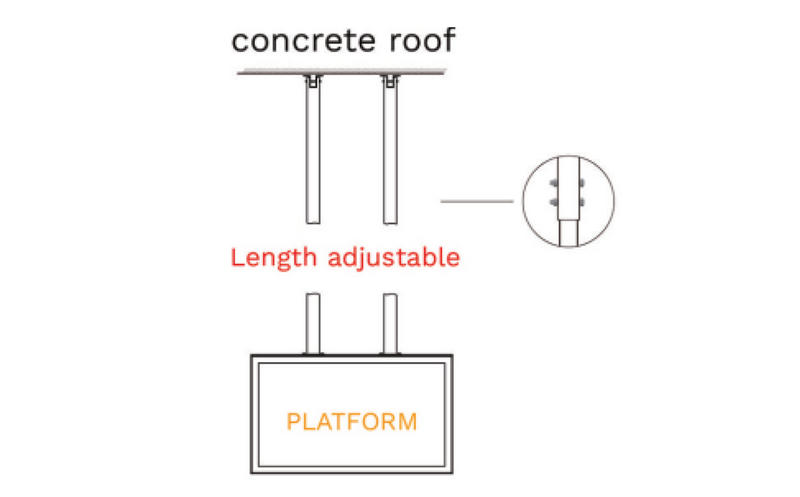

*Hanging structure design is easy to install.
*High brightness for sun readable
*IP65 waterproof rating design for outdoor application
*Look for passenger information
✦ Available size: 32”/43”/49”/55”/65”/75”/86”
✦ Hanging structure design, easy installation
✦ 2500 nits High Brightness
✦ IP65 rating enclosure
✦ Single/double side display
✦ Android OS/Windows OS/TV board
✦ FHD & UHD display
High Brightness: 2500 nits (Truly brightness while Sunlight Readable)
| TECHNICAL PARAMETERS | |
| Size | 32/43/49/55/65/75/86” |
| Resolution | 1920*1080(32-55”)/3840*2160(65-86”) |
| Backlight Adjustable | Automatic Ambient Light Sensor |
| Aspect Ratio | 16:9 |
| Viewing Angle | 178/178° |
| Brightness | 2000 – 2500 cd/m2 |
| Backlight type | Direct LED |
| Operation Lifetime | 50,000 hours |
| MECHANICAL | |
| Coating Finishing | Zinc Powder + Fine Grain Powder |
| Glass | Tempered glass |
| Color | Black/ White/ Grey, other RAL color can be customized |
| Enclosure Material | Galvanization Steel + Aluminum frame |
| Sounds | 2*Waterproof speaker |
| POWER | |
| Voltage Input | AC110-240V |
| Frequency | 50/60Hz |
| ENVIRONMENTAL | |
| IP Rating | IP65 |
| Operating Humidity | 10%-90% |
| Operating Temperature | -20℃ – 50℃ |
| Operating Environment | Full outdoor |
| MEDIA (TV BOARD VERSION) | |
| OS | N/A |
| ROM | N/A |
| USB input | 1*USB 2.0 |
| HDMI | 1*HDMI input |
| Audio output | 3.5mm earphone jack |
| GPU | N/A |
| VGA | *1 |
| Memory | N/A |
| MEDIA (ANDROID VERSION) | |
| OS | Android 5.1/7.1 |
| ROM | 8GB |
| USB input | 2*USB 2.0 |
| HDMI | 1*HDMI output (HDMI input option) |
| Audio output | 3.5mm earphone jack |
| CPU | Rockchip 3188 /3268/3399 |
| Ethernet | 1*RJ45 |
| Memory | 2GB DDR3 |
| Network | 802.11 /b/g/n wifi, 3/4G for option |
