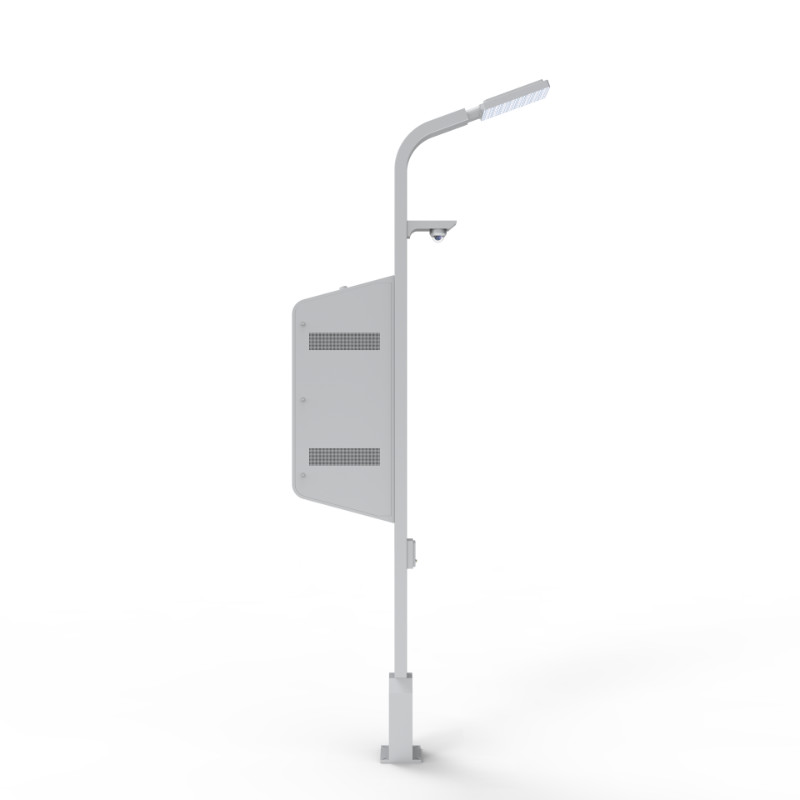

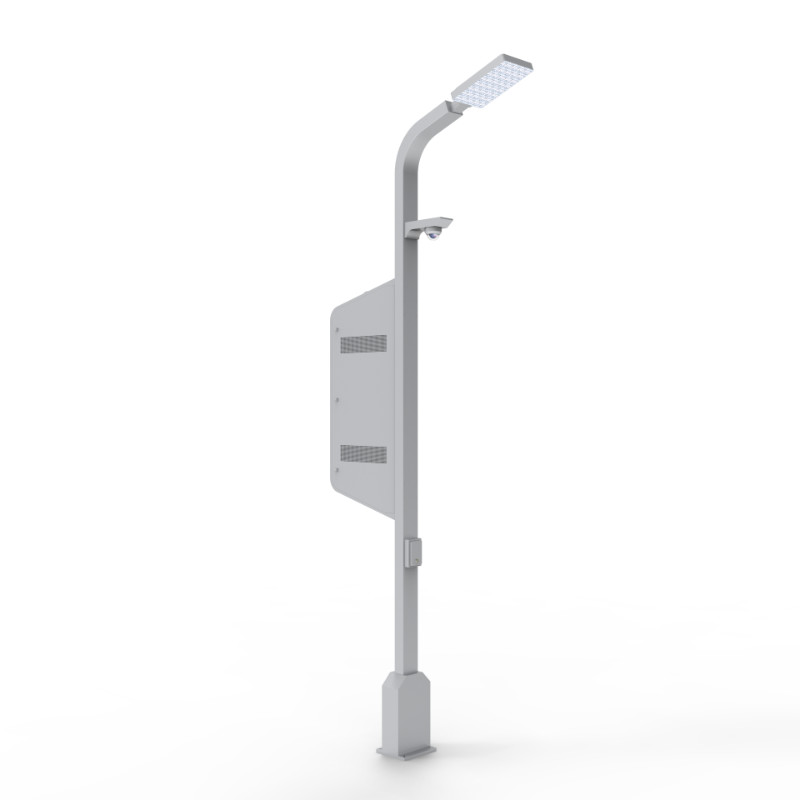

High brightness outdoor poster screen for street light pole
*Suit for garden, school, square, street, road
*Lighting solutions service: Lighting and circuitry design
*The pole’s shape is round tapered
*The height is between 3 and 15 meters
*Optical assembly of lighting fixture is IP 65
*Working atmosphere of lighting fixture between -35 °C~+45 °C
Widely used on the road, mall stage, high-grade residence district, tourist attractions, 4s stores, hospital entrance and many more outdoor places. Light pole led display video advertising media is better than traditional light box advertising media. High brightness street light pole outdoor poster screen makes a great visual impact! With waterproof and stable material, the street light pole led screen should be suitable for all bad weather in different regions of the world. The working temperature can be -35 to 45 degrees and all the durable material is anti-corrosion. It can last 7-9 years without breakdown.
✦ Available size: 32”/43”/49”/55”/65”/75”/86”
✦ 2500 nits High Brightness
✦ One-piece/Two pieces/Three pieces screen combine together (optional)
✦ IP65 rating enclosure
✦ Android OS/Windows OS/TV board
✦ FHD & UHD display
| TECHNICAL PARAMETERS | |
| Size | 32/43/49/55/65/75/86” |
| Resolution | 1920*1080(32-55”)/3840*2160(65-86”) |
| Backlight Adjustable | Automatic Ambient Light Sensor |
| Aspect Ratio | 16:9 |
| Viewing Angle | 178/178° |
| Brightness | 2000 – 2500 cd/m2 |
| Backlight type | Direct LED |
| Operation Lifetime | 50,000 hours |
| MECHANICAL | |
| Coating Finishing | Zinc Powder + Fine Grain Powder |
| Glass | Tempered glass |
| Color | Black/ White/ Grey, other RAL color can be customized |
| Enclosure Material | Galvanization Steel + Aluminum frame |
| Sounds | 2*Waterproof speaker |
| POWER | |
| Voltage Input | AC110-240V |
| Frequency | 50/60Hz |
| ENVIRONMENTAL | |
| IP Rating | IP65 |
| Operating Humidity | 10%-90% |
| Operating Temperature | -20℃ – 50℃ |
| Operating Environment | Full outdoor |
| MEDIA (TV BOARD VERSION) | |
| OS | N/A |
| ROM | N/A |
| USB input | 1*USB 2.0 |
| HDMI | 1*HDMI input |
| Audio output | 3.5mm earphone jack |
| GPU | N/A |
| VGA | *1 |
| Memory | N/A |
| MEDIA (ANDROID VERSION) | |
| OS | Android 5.1/7.1 |
| ROM | 8GB |
| USB input | 2*USB 2.0 |
| HDMI | 1*HDMI output (HDMI input option) |
| Audio output | 3.5mm earphone jack |
| CPU | Rockchip 3188 /3268/3399 |
| Ethernet | 1*RJ45 |
| Memory | 2GB DDR3 |
| Network | 802.11 /b/g/n wifi, 3/4G for option |
