*Panel brand: Samsung

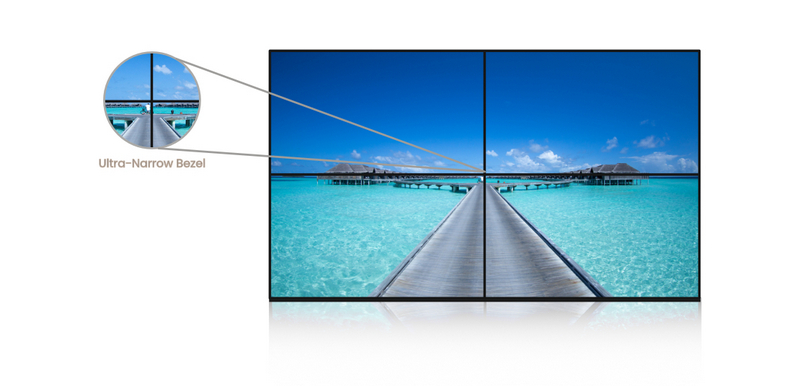

*The narrow bezel design reach 1.7mm
*Use for a retail store, TV studio and broadcasting, command and control center, reception, shopping mall, meeting room
*The screen resolution is 1920×1080, 16:9 wide screen display
*Support wide view angle 178 degrees video wall
*Excellent display: 3D Comb filter,3D noise reduction, HD, Progressive-Scan, 10-bit TFT Panel Drive, PIP, WCG-CCFL bright and LED colorful backlight

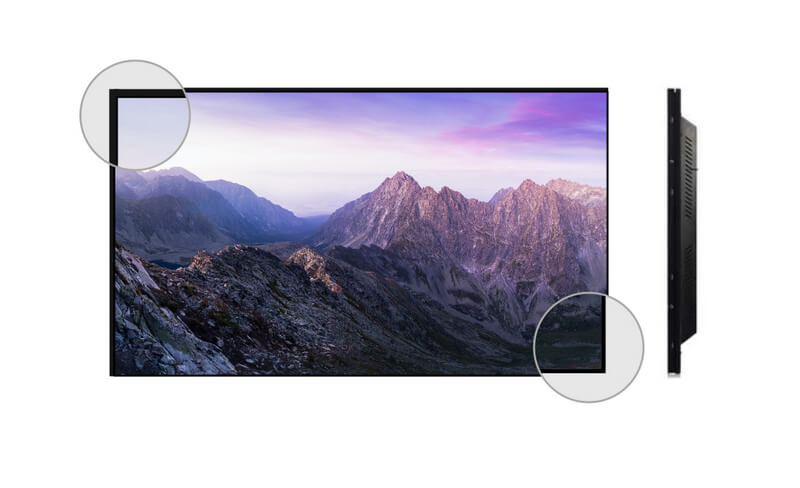

With the original Samsung panel, the screen and the frame are integrated, the ultra-narrow frame and the double seams are only 1.7mm. Designed specifically for video presentations, high-definition, high-brightness, high-resolution, bring you a new perspective experience. Users can flexibly open multiple windows on the video wall, define the window size, set the display size, can fill the display content arbitrarily, expand the window arbitrarily to the entire video wall, and truly realize the display requirements that are desired.
FHD 1920×1080
Contrast: 1200:1
500 nits brightness
RS-232 Daisy Chain
Excellent Performance Video Wall Displays for Video Wall applications
With wide bezel options from 0.88 – 3.5mm, LCD video wall displays can create large, visually stunning arrays for a wide variety of applications including retail stores, hospitals, universities, sports bars, corporate lobbies, casinos, and exhibits. Optimized for commercial applications, PID video wall is designed for video wall applications requiring long-term reliability and feature-rich functionality.
Configure Your Clarity Matrix Video Wall
The Clarity Matrix LCD Video Wall Calculator provides a simulated representative of your video wall along with important product specifications specific to your Clarify Matrix video wall design, including dimensions, weight, rack components
Engineered for 24/7 Reliability Clarity Matrix’s unique design means that any system failure be easily accessible, reducing downtime and keeping your vital video wall up and running. With a 25 percent reduction in heat produced, Clarity Matrix video walls exceed performance expectations even in the most demanding environments. A redundant power supply module provides continuous operation even in the event of a power failure.
LCD Panel | |
Display active screen size (mm) | 1209.60*680.40 |
Panel Brand | Samsung |
Size(inch) | 55 |
Backlight | LED |
Resolution | 1920*1080 |
Brightness | 500 |
Aspect ratio | 16:9 |
Contrast | 4000:1 |
Viewing angle | 178°/178° |
Colours displayed | 16.7M |
Typical reaction time | 8ms |
Backlight / Backlight Lifetime (hours) | 50,000 |
Operation/Mechanical | |
Operating Temperature (°C) | 0℃—50℃ |
Storage Temperature | -20℃—60℃ |
Humidity Range (RH) | 10% – 90% |
Housing Dimension (mm) | 1211.54*682.34*71.0mm |
Power | |
Power Supply | AC100—240V,50-60Hz |
Power Consumption (W) | ≤240W |
External Connectors | |
1 x USB | |
1 x RS232 IN | |
1 x RS232 OUT | |
1 x HDMIN IN | |
1 x VGA | |
1 x DVI | |
1 x IR |
