*Panel brand: Samsung

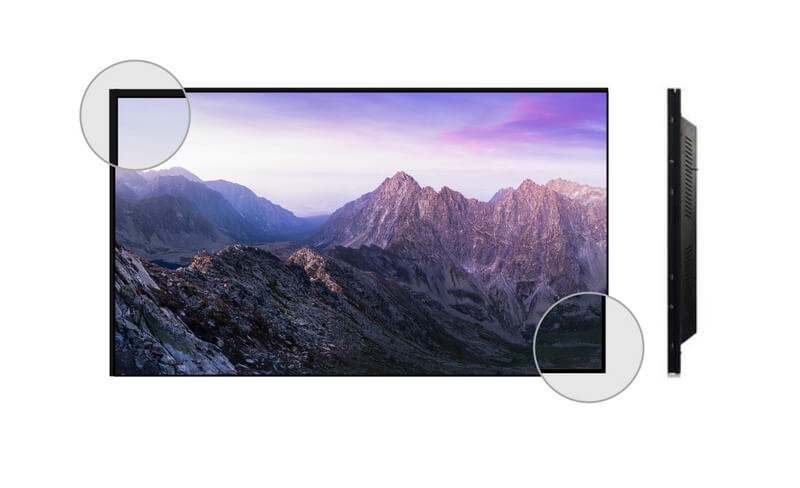

*The narrow bezel design reach 3.5mm
*Use for retail store,TV bar,KTV,command and control center,reception,shopping mall,meeting room
*The screen resolution is 1920×1080, 16:9 wide screen display
*Support wide view angle 178 degrees video wall
*Remote control function: by RS232 port and Ethernet connection for remote operation
*Convenient for installation and maintenance

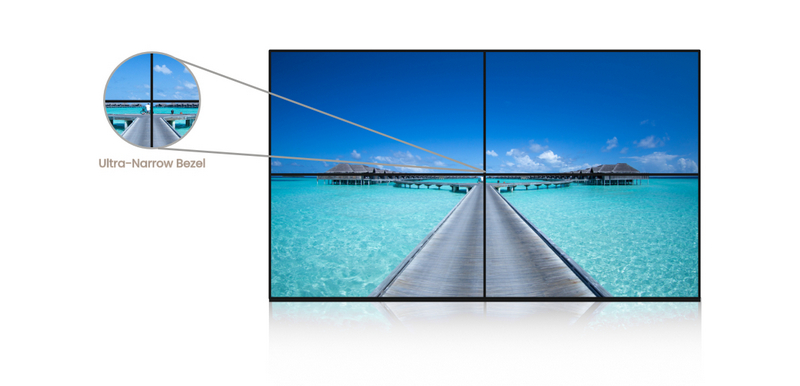

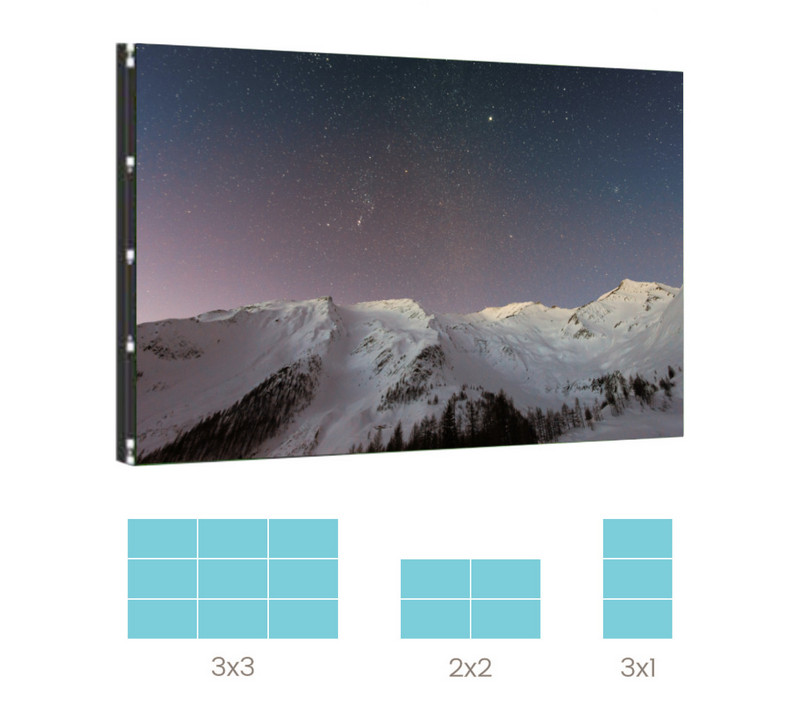

With the original Samsung panel, the screen and the frame are integrated. The ultra-narrow frame, and the double seams are only 3.5mm. Ultra-wide viewing angle extension technology, the image is not deformed, the color is not distorted, and the viewing angle is more enjoyable. Using extension technology, intelligent screen split display, arbitrary combination. The splicing screen can be installed in a cabinet, floor stand, or wall-mounted embedded installation. No matter how complex the site environment is, we can provide customers with the most suitable installation plan.
FHD 1920×1080
Contrast: 1200:1
500 nits brightness
RS-232 Daisy Chain
Excellent Performance Video Wall Displays for Video Wall applications
With wide bezel options from 0.88 – 3.5mm, LCD video wall displays can create large, visually stunning arrays for a wide variety of applications including retail stores, hospitals, universities, sports bars, corporate lobbies, casinos, and exhibits. Optimized for commercial applications, PID video wall is designed for video wall applications requiring long-term reliability and feature-rich functionality.
Configure Your Clarity Matrix Video Wall
The Clarity Matrix LCD Video Wall Calculator provides a simulated representative of your video wall along with important product specifications specific to your Clarify Matrix video wall design, including dimensions, weight, rack components.

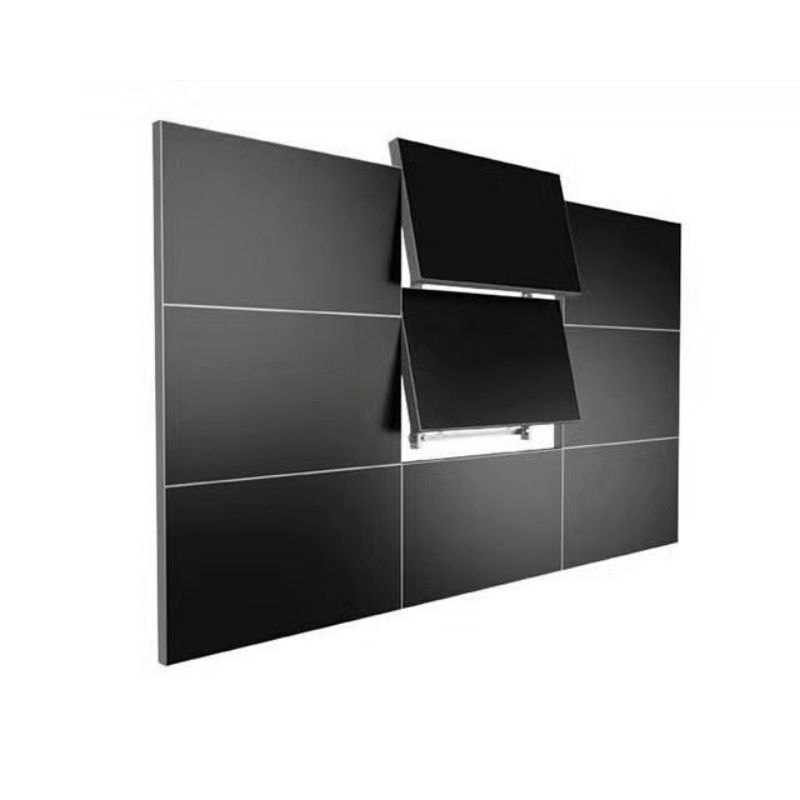

Engineered for 24/7 Reliability Clarity Matrix’s unique design means that any system failure be easily accessible, reducing downtime and keeping your vital video wall up and running. With a 25 percent reduction in heat produced, Clarity Matrix video walls exceed performance expectations even in the most demanding environments. A redundant power supply module provides continuous operation even in the event of a power failure.
| LCD Panel | |
| Display active screen size (mm) | 1429.40*804.40mm |
| Panel Brand | Samsung |
| Size（inch） | 65 |
| Backlight | LED |
| Resolution | 3840*2160 |
| Brightness | 500 |
| Aspect ratio | 16：9 |
| Contrast | 4000：1 |
| Viewing angle | 178°/178° |
| Colours displayed | 16.7M |
| Typical reaction time | 8ms |
| Backlight / Backlight Lifetime (hours) | 50,000 |
| Operation/Mechanical | |
| Operating Temperature (°C) | 0℃—50℃ |
| Storage Temperature | -20℃—60℃ |
| Humidity Range (RH) | 10% – 90% |
| Housing Dimension (mm) | 1432.58(W)×807.62(H)×86.6(D) |
| Power | |
| Power Supply | AC100—240V,50-60Hz |
| Power Consumption (W) | ≤240W |
| External Connectors | |
| 1 x USB | |
| 1 x RS232 IN | |
| 1 x RS232 OUT | |
| 1 x HDMIN IN | |
| 1 x VGA | |
| 1 x DVI | |
| 1 x IR | |
