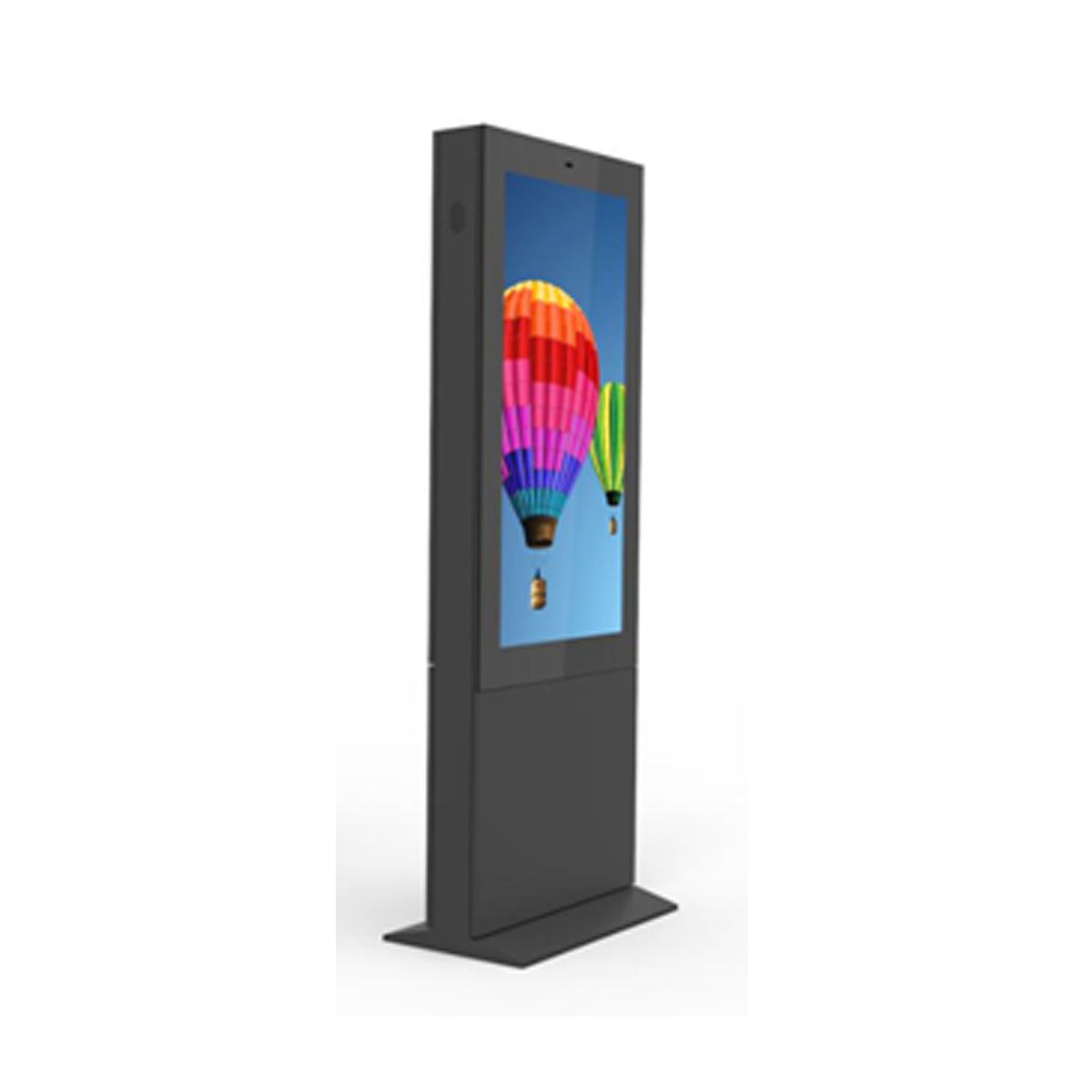

High brightness ultra slim outdoor totem display is a display for outdoor use. The design of IP55 can effectively prevent water and dust to adapt to changing weather. It has an embedded screen and is easy to install. In addition, ultra slim is also one of its characteristics. High brightness can meet the needs of outdoor reading.
*Ultra slim
*embedded screen ,easy to install
*High brightness for sun readable
*IP55 rating enclosure
*With weatherproof shield design
PID outdoor totem use A+ industrial panel with a wide operating temperature. The panel with a 110°C Hi-Tri liquid. CPLP panel, IK09 rated impact-resistant tempered cover glass. High brightness with 2500nits, PID Touch outdoor totem is the interactive solution for digital signage, classrooms, meeting rooms, shopping malls, hotels, trade shows and many other areas.
* A+ industrial panel with a wide operating temperature. The panel with a 110°C Hi-Tri liquid. CPLP panel
* Operating temps: -10 ~ +85°C
* High brightness with 2500nits
* IK09 rated, impact-resistant tempered cover glass
* Slim design with 90mm thickness
* All weather rated: IP65
| PC System | |
| CPU | RK3288 |
| Memory | 2GB DDR3 |
| Storage | 8GB EMMC Flash |
| Network | 10M/100M Network; W-LAN |
| LCD Panel | |
| Display active screen size (mm) | 1210×681 |
| IP grade | IP55 |
| Size（inch） | 55 |
| Backlight | LED |
| Resolution | 1920 * 1080 |
| Brightness | 2000 nits(auto adjust from 600 to 2500 nits) |
| Aspect ratio | 16：9 |
| Viewing angle | 178°/178° |
| Colours displayed | 1.07B |
| Backlight / Backlight Lifetime (hours) | LED / 50,000 |
| Operation/Mechanical | |
| Operating Temperature (°C) | -15℃—50℃ |
| Storage Temperature | -20℃—60℃ |
| Screen Temperature | Over 95℃ |
| Humidity Range (RH) | 10% – 90% |
| Housing (mm) L × W × H | 2100x150x890 |
| Speaker | 2x10W |
| Power | |
| Power Supply | AC100—240V |
| Power Consumption (W) | 120 – 400 W |
| External Connectors | |
| HDMI | |
| USB | |
| RS232 | |
