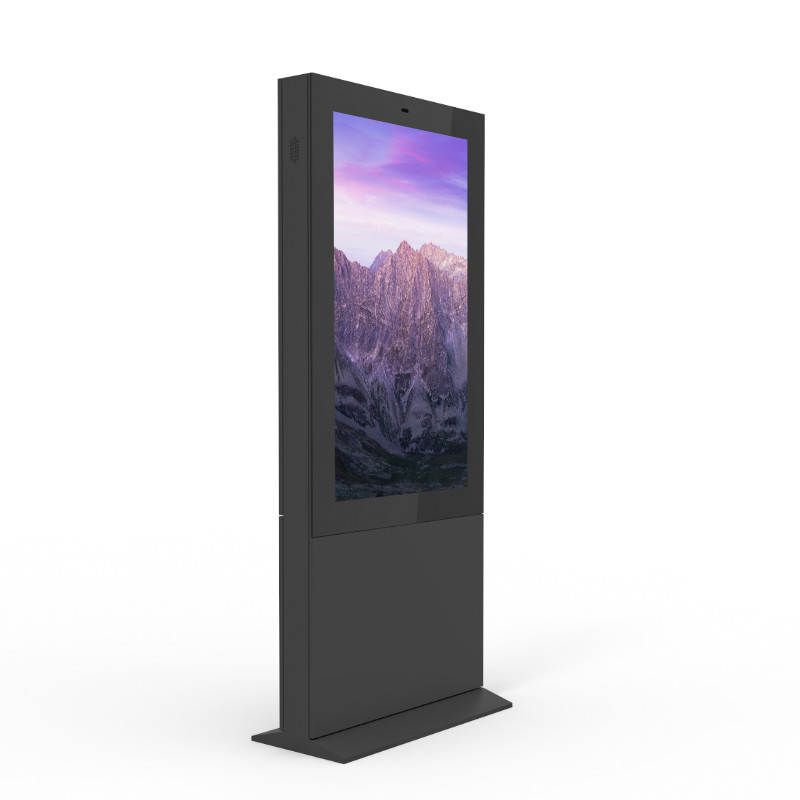

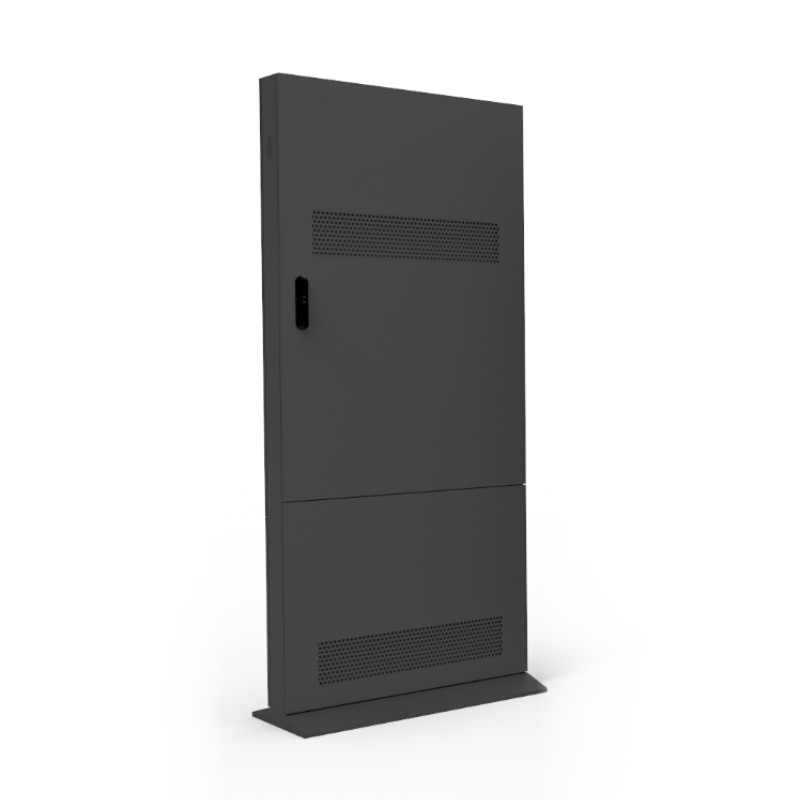

Ultra Slim Free Standing Outdoor Digital Signage

*Available size: 32/43/49/55/65/75/86 inch
*Hanging structure design, easy installation
*2500 nits High Brightness
*With weatherproof shield design
*IP65 rating enclosure
*Single/double side display
*Support system: Android OS/Windows OS/TV board
*FHD & UHD display
*Backlight adjustable Automatic Ambient Light Sensor

Product Details:

Ultra slim free standing outdoor digital signage features a high-quality aluminum alloy structure, much lighter and thinner! Easy to transport with ultra-slim and lightweight design. Full outdoor waterproof, dustproof, anti-theft, explosion-proof, anti-corrosion for more than 8 years. Fully modular design for easy installation and maintenance even if it is placed outdoors, there is no need to worry about thieves, sunlight, dust and water.

Product Features:

✦ Available size: 32”/43”/49”/55”/65”/75”/86”
✦ Hanging structure design, easy installation
✦ 2500 nits High Brightness
✦ With weatherproof shield design
✦ IP65 rating enclosure
✦ Single/double side display
✦ Android OS/Windows OS/TV board
✦ FHD & UHD display

ultra slim free standing outdoor digital signage7

Full outdoor environmental design (high temperature, low temperature, rain, and sun) All products must be passed through the aging test in 24 hours and a waterproof & dust-proof test.

ultra slim free standing outdoor digital signage4

Smart temperature control system operation temperature: -20℃ ~ +50℃

ultra slim free standing outdoor digital signage5

Various colors can choose

ultra slim free standing outdoor digital signage6

Product Parameters:

TECHNICAL PARAMETERS
Size 32/43/49/55/65/75/86”
Resolution 1920*1080(32-55”)/3840*2160(65-86”)
Backlight Adjustable Automatic Ambient Light Sensor
Aspect Ratio 16:9
Viewing Angle 178/178°
Brightness 2000 – 2500 cd/m2
Backlight type Direct LED
Operation Lifetime 50,000 hours
MECHANICAL
Coating Finishing Zinc Powder + Fine Grain Powder
Glass Tempered glass
Color Black/ White/ Grey, other RAL
color can be customized
Enclosure Material Galvanization Steel + Aluminum frame
Sounds 2*Waterproof speaker
POWER
Voltage Input AC110-240V
Frequency 50/60Hz
ENVIRONMENTAL
IP Rating IP65
Operating Humidity 10%-90%
Operating Temperature -20℃ – 50℃
Operating Environment Full outdoor
MEDIA (TV BOARD VERSION)
OS N/A
ROM N/A
USB input 1*USB 2.0
HDMI 1*HDMI input
Audio output 3.5mm earphone jack
GPU N/A
VGA *1
Memory N/A
MEDIA (ANDROID VERSION)
OS Android 5.1/7.1
ROM 8GB
USB input 2*USB 2.0
HDMI 1*HDMI output (HDMI input option)
Audio output 3.5mm earphone jack
CPU Rockchip 3188 /3268/3399
Ethernet 1*RJ45
Memory 2GB DDR3
Network 802.11 /b/g/n wifi, 3/4G for option
